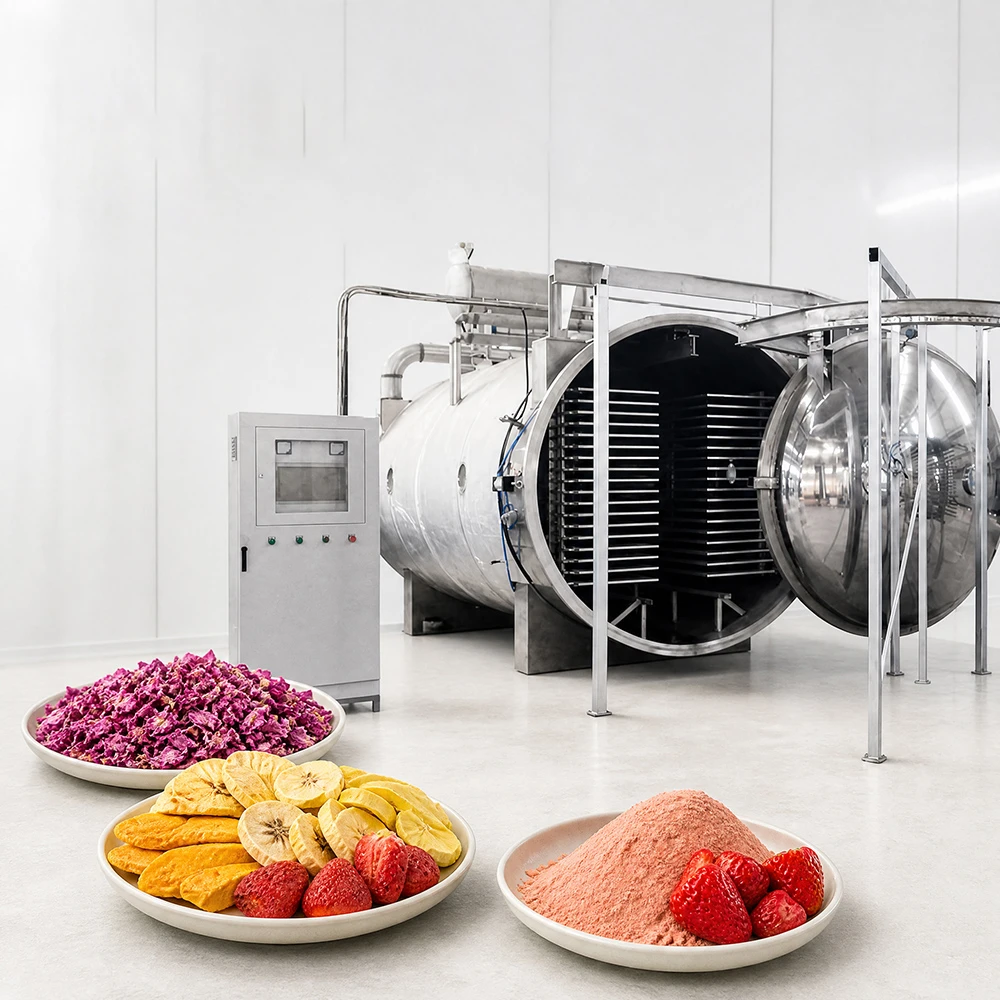

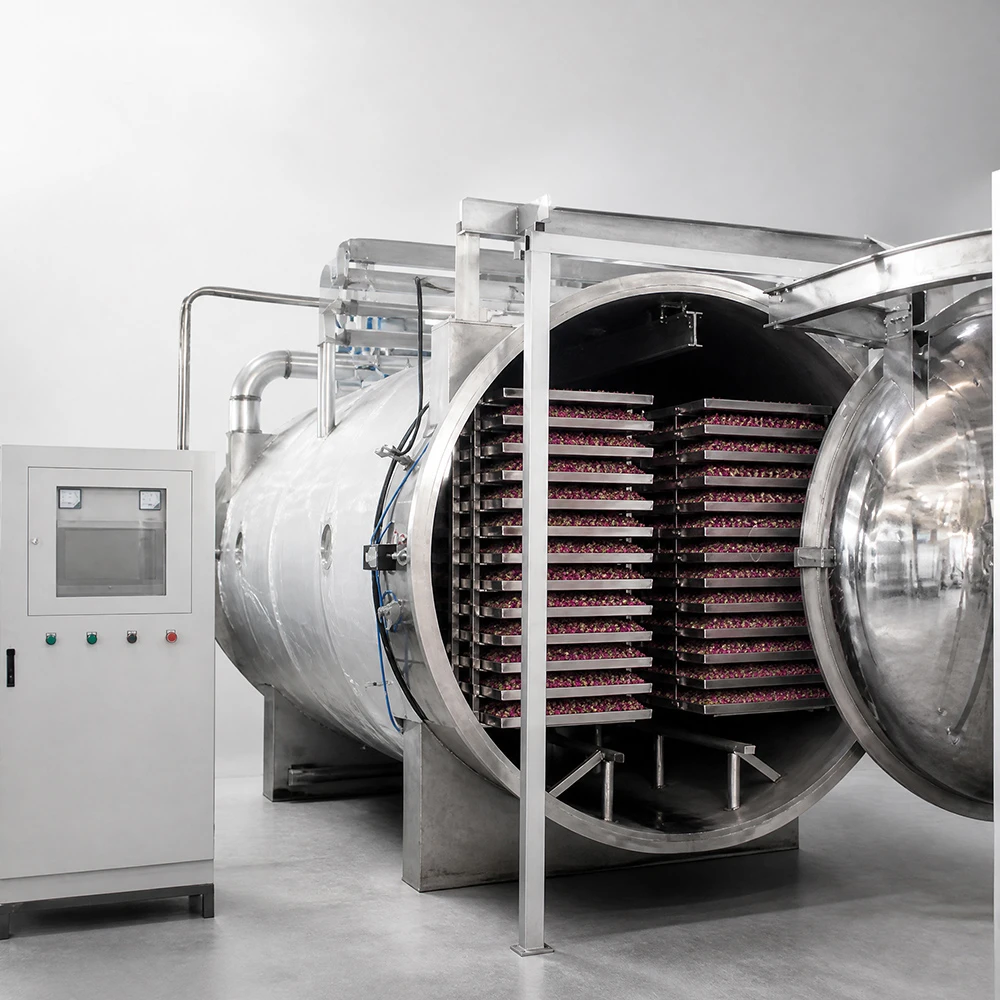

A pet food freeze dryer (vacuum freeze dryer for pet treats) uses low-temperature vacuum sublimation drying to turn chicken breast, quail, egg yolk, raw meaty bones (BARF), capelin and other pet food ingredients into freeze-dried treats. Thanks to their high nutritional value, natural state and excellent palatability, freeze-dried pet treats have replaced traditional air-dried and hot-air-dried snacks and become a best-selling category in the pet food industry. The whole process is divided into three main stages: pre-freezing, vacuum sublimation and desorption drying. First, the pre-processed ingredients are rapidly pre-frozen so that the internal water solidifies into ice crystals; then, in a high-vacuum environment, the ice crystals sublimate directly and are separated out, with no high-temperature baking at any point; finally, the bound water in the ingredients is precisely removed, with the final moisture content kept within the standard range. Shandong TCA Intelligent Technology Co., Ltd. (TCA) is a professional pet freeze-drying equipment manufacturer, dedicated to the development and production of industrial pet treat freeze dryers and vacuum freeze dryers, offering customised low-temperature freeze-drying processes for meat, egg, raw meaty bones and aquatic ingredients.
Why Use a Pet Food Freeze Dryer Instead of Air Drying or Hot-Air Drying
Traditional high-temperature drying equipment damages meat proteins, causing the ingredients to harden, lose nutrients and become unpalatable. Vacuum freeze drying dehydrates at low temperature throughout and does not destroy the active nutrients in the ingredients, fundamentally solving the quality defects caused by high-temperature processing — this is why it has become the core process for premium pet treats.
| Comparison | Vacuum freeze-dried pet treats | Traditional air-dried / hot-air-dried treats |
|---|---|---|
| Processing principle | Pre-freezing followed by vacuum sublimation; ice crystals change directly from solid to gas | Moisture carried away by hot air or ambient airflow |
| Processing temperature | Low temperature throughout; no high-temperature baking | Prolonged heat exposure |
| Nutrient retention | Active nutrients preserved; meat proteins intact | Meat proteins damaged; nutrients lost |
| Texture and palatability | Full-bodied meat, crisp texture; dogs and cats prefer it | Hard ingredients, poor palatability |
| Rehydration | Porous and loose; rehydrates quickly | Dense structure; rehydrates slowly |
| Product positioning | Premium pet treats | Mass-market pet treats |
Choosing freeze-dried treats is essentially paying for palatability and nutrition: for the same tonne of chicken breast, the premium that the freeze-dried finished product commands in the end market far exceeds that of traditional hot-air-dried treats — which is why pet food brands and contract manufacturers alike are installing freeze-drying lines.
| Stage | What it does | Key point |
|---|---|---|
| 1) Pre-freezing | Rapidly pre-freezes pre-processed chicken breast, quail, egg yolk, raw meaty bones, capelin and other ingredients to a low-temperature state | Solidifies the water inside the ingredients into ice crystals — the prerequisite for sublimation |
| 2) Vacuum sublimation | In a high-vacuum environment, the ice crystals sublimate directly and are separated out | No high-temperature baking, so the active nutrients in the ingredients are not destroyed |
| 3) Desorption drying | Precisely removes the bound water in the ingredients | Final moisture content kept within the standard range |
Of the three stages, the most easily underestimated is the water-vapour trapping capacity in the second stage. Meat ingredients release far more water vapour than plant-based materials; if the cold trap cannot keep up, water vapour flows back onto the ingredients inside the chamber, directly causing caking, oil release and collapse — and this is precisely where a general-purpose freeze dryer most often fails when producing pet treats.
All material-contact parts of the machine are made of 304 food-grade stainless steel. The chamber is mirror-polished with flush welds and no dead corners, so meat residue and fat are not easily retained, cleaning and sanitising are more convenient, and bacterial growth and secondary contamination of the material are effectively prevented. The equipment is excellently sealed, effectively preventing air ingress that would cause the ingredients to oxidise, absorb moisture again or discolour. It fully complies with the SC production standard (China's food production licence standard) and is suitable for use in standardised clean-room production.

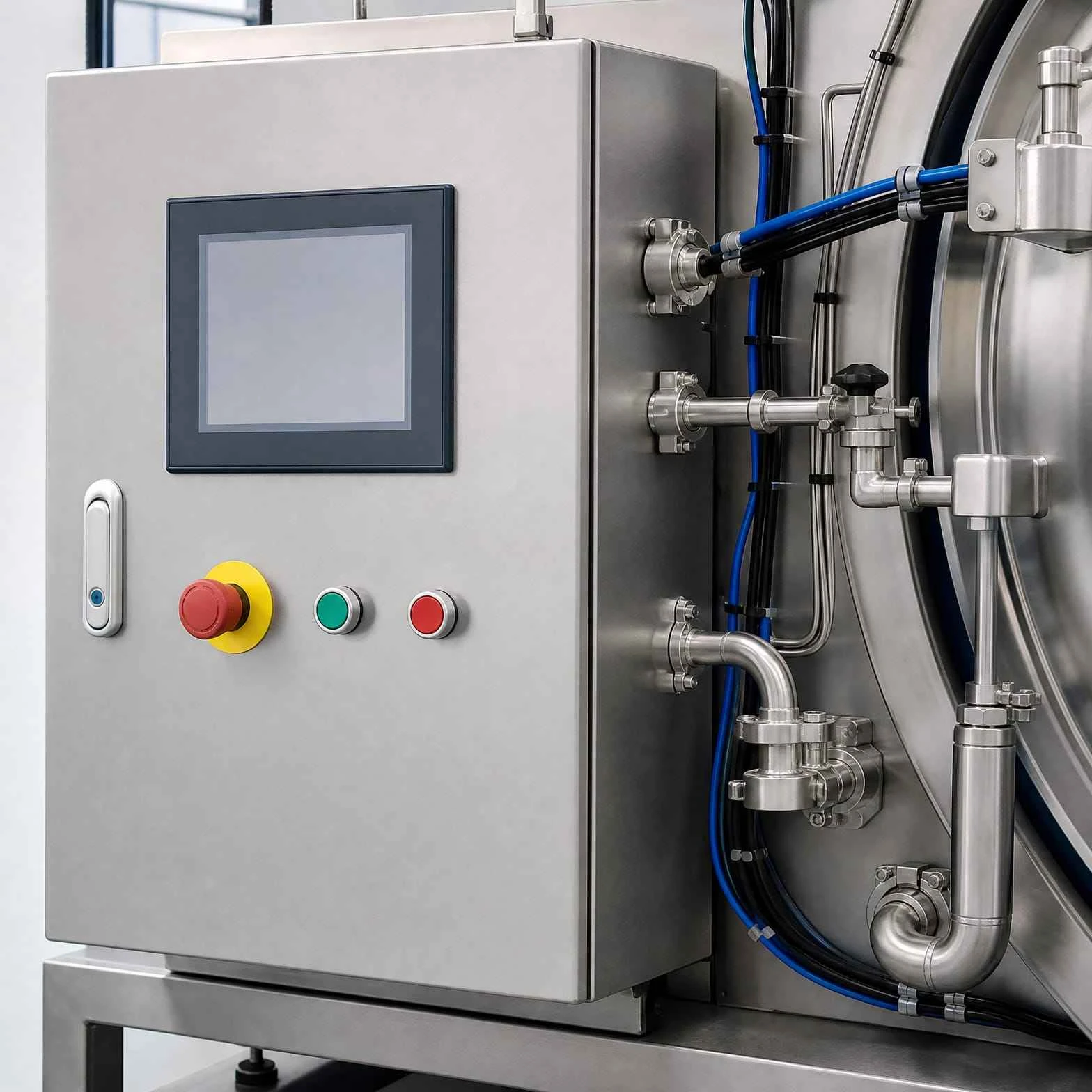

The equipment is fitted with an industrial-grade PLC intelligent control system, making it an intelligent pet freeze-drying machine. It has multiple proven freeze-drying curves dedicated to pet ingredients built in, suitable for chicken breast, beef, quail, egg yolk, chicken liver, raw meaty bones, mixed pet fruit-and-vegetable ingredients and many other materials. The machine supports one-touch automatic operation with automatic control of temperature, pressure and time, with no repeated manual adjustment needed, and can run 24 hours of continuous production, effectively solving the problems of uneven dryness and inconsistent appearance in batch production, and ensuring that every batch of freeze-dried pet treats has uniform quality and premium appearance.
The difficulty of freeze-drying pet ingredients lies in loading different materials in the same chamber: chicken liver is high in moisture, beef cubes are dense, and egg yolk is rich in fat — the three have different requirements for heating and vacuum. Whether the recipe is mature enough directly determines whether the finished product comes out "crisp and full-bodied" or "dry outside and wet inside".
To address the high water vapour and high fat content typical of freeze-drying pet meat ingredients, the TCA vacuum pet food freeze dryer is upgraded with high-power refrigeration units and a large cold trap water-trapping system. Water- and ice-trapping capacity is stronger, sublimation dehydration is faster, and the water vapour released by the ingredients is carried away quickly, preventing vapour backflow from causing caking, oil release and collapse. The equipment runs stably with a low failure rate; compared with ordinary freeze-drying equipment it offers higher capacity and lower energy consumption, substantially reducing the plant's mass-production cost.
Our pet food freeze dryers come in a full range of models, comprehensively covering small laboratory freeze dryers, medium-sized commercial freeze-drying equipment and large industrial mass-production freeze-drying units. Non-standard customisation is available according to the customer's plant size, required daily output and the types of ingredients processed. A unit can be used standalone or integrated with ingredient pre-processing, tray loading, conveying and packaging equipment, providing a complete turnkey pet freeze-drying production line solution and meeting the production needs of start-up plants, large-scale plants and brand contract manufacturers alike.
| Common problem | Root cause | Solution |
|---|---|---|
| Ingredient collapse | Meat tissue loses its structural support during dehydration; vacuum and temperature do not match | Dedicated freeze-drying recipes for pet ingredients, with staged control of heating and vacuum |
| Severe oil release | High-fat ingredients heat up too quickly during the sublimation stage | Low-temperature slow sublimation, combined with a large cold trap for rapid water trapping |
| Not dry through | Insufficient water-trapping capacity; water vapour flows back onto the ingredients | High-power refrigeration units + large cold trap water-trapping system |
| Large batch colour variation | Reliance on manual intervention; unstable parameters | Fully automated one-touch operation, running stably 24 hours of continuous production |
What these four problems have in common is that they are all process-control issues rather than finished-product inspection issues — by the time collapse, oil release or colour variation has been detected, reworking is already too late. That is why the priority when selecting a pet freeze-drying line is not the nominal specifications of a single machine, but whether it can run stably over the long term under high-fat, high-moisture meat conditions.
Buying a single freeze dryer and configuring a complete freeze-dried pet treat production line are two different projects. Freeze drying is the final process in pet treat processing, and the performance of every preceding stage is transmitted into the freeze-drying chamber.
| Stage | Function | Interface with the freeze-drying stage |
|---|---|---|
| Ingredient pre-processing | Washing, cutting, trimming | Cut size determines the time required for pre-freezing and sublimation |
| Tray loading | Even distribution according to capacity | Loading thickness directly affects dehydration uniformity |
| Pre-freezing | Solidifies the water in the ingredients into ice crystals | Can be completed inside the freeze-drying chamber, or as standalone pre-freezing |
| Freeze drying | Vacuum sublimation removes water and produces the finished product | Core stage; must match the material characteristics of all preceding stages |
| Packaging | Blocks out water vapour and oxygen | Freeze-dried products absorb moisture easily; sealing directly determines shelf life |
The place where a complete line most often goes wrong is the match between tray loading and freeze drying: if loading is too thick, the water vapour in the chamber cannot be removed by the cold trap in time, producing a dry exterior and a wet interior; if loading is too thin, capacity utilisation remains low. When selecting equipment, therefore, the whole line's material parameters — piece size, weight per tray and batch quantity — should be given to the equipment supplier together, rather than reporting only a daily output figure.
Our pet food freeze dryers can be used standalone or integrated with ingredient pre-processing, tray loading, conveying and packaging equipment, providing a complete turnkey pet freeze-drying production line solution.
| Dimension | Content |
|---|---|
| Suitable customers | Pet treat processing plants, pet food contract manufacturers, fresh pet ingredient producers, pet food R&D laboratories, cross-border pet food production bases |
| Processable products | Freeze-dried chicken breast, freeze-dried beef cubes, freeze-dried quail, freeze-dried capelin, freeze-dried egg yolk, freeze-dried chicken liver, freeze-dried raw meaty bone (BARF) cubes, freeze-dried pet fruit and vegetables |
| Finished product characteristics | High nutrition, porous and loose, crisp texture, good rehydration, no additives, longer shelf life |
| Downstream uses | End retail, as well as brand contract manufacturing and pet food raw materials |
The value of freeze-dried pet treats also lies in category extensibility: the same machine can produce single-item freeze-dried chicken breast as well as mixed-formula raw meaty bone (BARF) cubes and freeze-dried pet fruit and vegetables. The product matrix can be adjusted quickly as market trends change, without having to configure a separate production line for every category.
What is the difference between a pet food freeze dryer and an ordinary freeze dryer?
A pet food freeze dryer is purpose-built equipment for high-fat, high-moisture meat ingredients: it needs greater water- and ice-trapping capacity to prevent backflow, and it must have built-in freeze-drying recipes dedicated to different materials such as chicken breast, beef, quail, egg yolk, chicken liver and raw meaty bones. A general-purpose freeze dryer is prone to ingredient collapse, severe oil release, incomplete drying, large batch colour variation and cross-contamination.
Are freeze-dried pet treats really better in nutrition and palatability than hot-air-dried ones?
Freeze drying stays at low temperature throughout and does not destroy meat proteins and other active nutrients; the finished product is porous and loose, rehydrates quickly, has full-bodied meat, contains no additives and has a longer shelf life. Traditional high-temperature hot-air drying causes the ingredients to harden, lose nutrients and become unpalatable. This is also why freeze-dried pet treats have replaced traditional air-dried and hot-air-dried snacks to become a best-selling category.
Can one machine process meat, egg and aquatic ingredients at the same time?
Yes. The machine has multiple freeze-drying recipes dedicated to pet ingredients built in, suitable for chicken breast, beef, quail, egg yolk, chicken liver, raw meaty bones, mixed pet fruit-and-vegetable ingredients and aquatic materials such as capelin — simply call up the corresponding recipe when switching categories. We recommend providing the piece size and weight per tray of each material at the same time, so that tray-loading thickness can be planned.
Can the equipment be customised? Do you offer trial runs with sample material?
Our models range from small laboratory freeze dryers and medium-sized commercial freeze-drying equipment to large industrial mass-production freeze-drying units, and can be customised on a non-standard basis according to plant size, required daily output and the types of ingredients processed. Free trial runs with your own material are supported, so that the freeze-dried finished product can be verified on site before a solution is finalised — for high-fat, high-moisture meats, this step is far more reliable than reading a specification sheet.
What does after-sales service include?
We provide on-site installation, commissioning, operator training and lifetime maintenance, with prompt after-sales response. As a manufacturer selling direct there is no middleman markup, and our professional technical team helps customers select models, plan plant layout and design customised production solutions free of charge. Every machine undergoes multiple quality inspections and commissioning runs before it leaves the factory.
Shandong TCA Intelligent Technology Co., Ltd. (TCA) is a source manufacturer specialising in the development, production, sales and after-sales service of food freeze dryers and pet freeze-drying equipment. Having worked deep in the freeze-drying machinery industry for many years, the company has extensive hands-on experience in delivering pet food freeze-drying projects and is familiar with the process challenges of freeze-drying every kind of pet ingredient. Selling direct from the factory with no middleman markup means better value; a one-stop service is provided throughout: free trial runs with your own material to verify the freeze-dried finished product on site; a professional technical team to help customers select models, plan plant layout and design customised production solutions free of charge; multiple quality inspections and commissioning runs before dispatch for reliable quality; and on-site installation, commissioning, operator training and lifetime maintenance — so that plant set-up, start-up and production are worry-free from beginning to end. As quality upgrading sweeps the pet food industry, a stable, energy-efficient and high-capacity pet food freeze dryer is the core hardware for building best-selling products and capturing market share.
Related equipment: vacuum freeze drying equipment, fruit and vegetable vacuum freeze dryer, coffee vacuum freeze dryer, packaging equipment.
Need a pet food freeze dryer solution and quote? Send us the pet ingredient categories you plan to process (meat / egg / raw meaty bones / aquatic, together with piece size), your target daily output, finished-product targets (moisture content, rehydration performance) and plant conditions. On that basis we will prepare the equipment configuration, capacity plan and quotation, and can arrange a free trial run with your own material.
Frequently Asked Questions
This machine is designed for processing a wide range of food raw materials. Depending on the specific model, it can handle fresh, chilled, or frozen materials within a defined size and moisture range. For optimal performance, we recommend confirming the raw material specifications before ordering.
The equipment is designed to handle potatoes of varying sizes. For certain processes such as cutting or peeling, adjustable settings or size grading solutions can be provided to ensure consistent output quality.
We provide customized solutions based on your factory layout, processing capacity, and production requirements. Our engineering team can assist with line design and technical planning.
Our solution service typically includes process analysis, equipment configuration, line layout drawings, operation guidance, and technical support. Upon request, we can also assist with installation guidance, commissioning, and operator training through online support.
We provide long-term after-sales support for complete processing lines, including technical consultation, troubleshooting assistance, spare parts supply, and system upgrade advice. Detailed operation manuals and maintenance guidelines are provided to ensure smooth daily operation.
