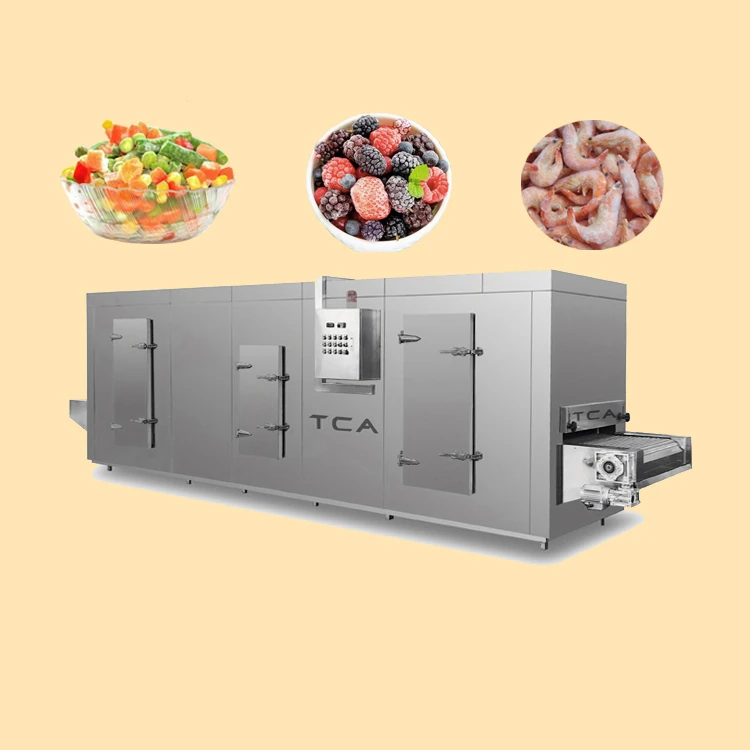

The tunnel quick freezer (fully automatic tunnel blast freezer) uses low-temperature, high-velocity circulating air quick-freezing technology to move food continuously through the ice crystal formation zone for ultra-fast freezing. With the food deep-processing industry growing rapidly, quick freezing has become a core step in protecting taste, nutrition and shelf life, while traditional batch freezers suffer from low capacity, uneven freezing, high energy consumption and difficult cleaning — and can no longer keep pace with modern production lines. Shandong TCA Intelligent Technology Co., Ltd. (TCA) has spent years developing and building food refrigeration machinery, and its fully automatic industrial tunnel freezer is built around the core advantages of continuous operation, ultra-fast freezing, low energy consumption and hygienic, easy-to-clean design, giving food manufacturers reliable equipment for large-scale, standardized production.
Why Choose a Tunnel Quick Freezer Instead of a Batch System
At the heart of quick freezing is the tension between speed and uniformity: the slower the freeze, the larger the ice crystals formed inside the food cells, and the more likely they are to puncture cell walls — so the product leaks water and turns mushy after thawing. The less uniform the freeze, the more likely a batch contains items that never freeze through. The tunnel quick freezer solves both at once — it replaces batch tray loading with continuous conveying, and static cooling with forced-air circulation.
| Comparison dimension | Tunnel quick freezer | Traditional batch freezer |
|---|---|---|
| Operation mode | Integrated continuous feeding, freezing and discharging | Batch tray loading, whole batch in and out |
| Freezing speed | Passes through the ice crystal formation zone in 15-20 minutes | Long freezing cycle, coarse ice crystals |
| Freezing uniformity | Longitudinal opposed-air blowing, cold air evenly covering every part of the tunnel | Freezing dead zones, unevenly frozen product |
| Energy performance | Good insulation, high cold-energy utilization, long intervals between defrosting | Relatively high energy consumption |
| Cleaning and maintenance | Integrated structure with no hygiene dead zones; water defrosting leaves no residue | Difficult to clean |
| Capacity positioning | Large-scale volume production for medium and large food manufacturers | Small-batch, non-continuous production |
Choosing a tunnel system is essentially paying for product pass rate: uneven freezing splits a single batch into an "acceptable" portion and a "rework" portion, whereas the tunnel quick freezer guarantees consistent freezing quality in every batch.
| Stage | What happens | Key metric |
|---|---|---|
| Establishing an ultra-low-temperature environment | Low-temperature, high-velocity circulating refrigeration cools the whole tunnel | −35°C or below ultra-low-temperature freezing environment |
| Rapid passage through the ice crystal formation zone | Food passes quickly through the ice crystal formation zone under longitudinal opposed cold air | 15-20 minutes |
| Reaching target core temperature | The product core temperature drops to the frozen-storage requirement before discharge | −18°C or below |
Of these three stages, the most underrated is the speed of passage in stage two. The ice crystal formation zone is the decisive window for frozen product quality: the faster the product passes through, the finer and more evenly distributed the ice crystals, and the less the cell structure is damaged. This is why the selection focus for a tunnel quick freezer is not "how low can it go", but "at that temperature, how fast and how evenly can the product be moved through that window" — temperature is only the precondition; air-velocity uniformity and mesh-belt speed control are what decide the finished product.

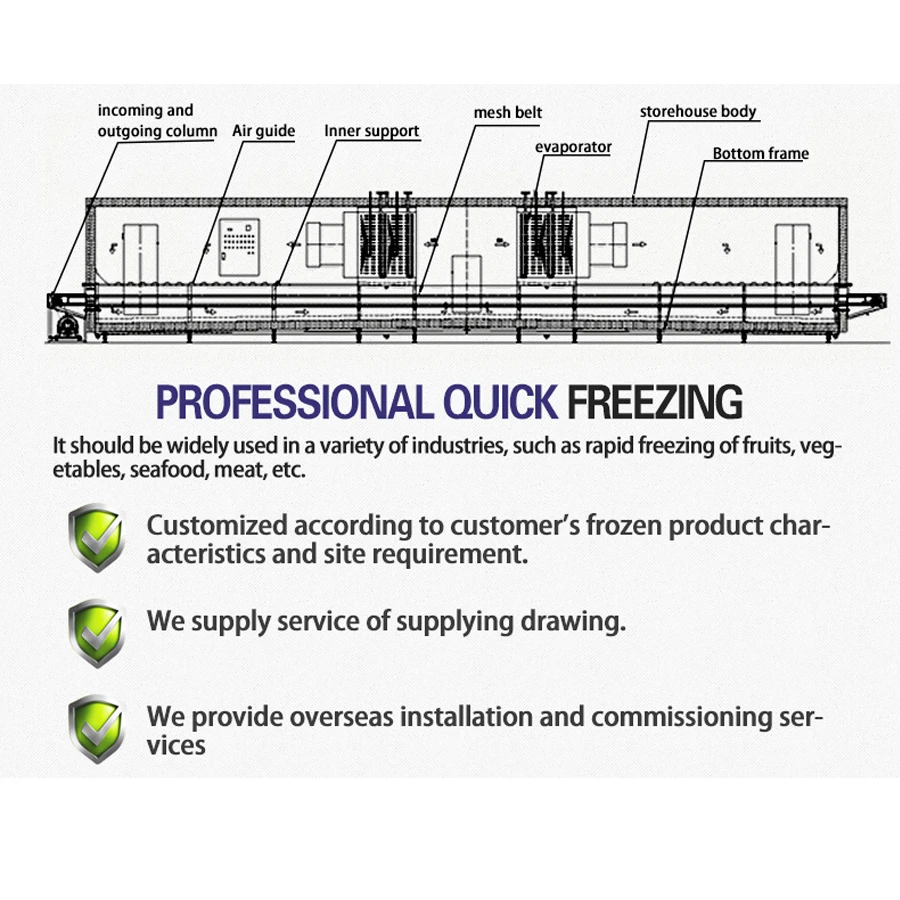

The machine also uses an optimized air-duct circulation system with a longitudinal opposed-air blowing design, so cold air evenly covers every part of the interior of the quick freezing tunnel. This eliminates the freezing dead zones and uneven freezing typical of conventional equipment, ensures consistent freezing quality in every batch, and greatly raises the pass rate of finished products.
The entire machine is designed and built strictly to HACCP hygiene standards for the food industry, balancing production safety with equipment durability. The enclosure uses double-layer stainless steel polyurethane sandwich insulation panels with excellent thermal insulation, effectively reducing cold-energy loss and energy waste; its tight sealing also keeps outside heat and contaminants out of the tunnel interior. Every component inside the machine that contacts food is made of high-grade SUS304 stainless steel — corrosion-resistant, aging-resistant and unlikely to harbor bacteria, in line with food-safety production rules. The conveying system is fitted with a smooth stainless steel mesh belt that runs steadily, does not jam product and leaves no scratches, handling food of every shape.
The machine uses a water defrosting design for residue-free, hygienic cleaning, and its simple integrated structure leaves no hygiene dead zones, so routine disassembly, cleaning and servicing are quick and efficient, sharply reducing maintenance costs and manual cleaning labor. The overall structure is stable and the workmanship precise, giving a service life far longer than ordinary equipment on the market.
The longer the tunnel, the harder air-duct design becomes — in conventional equipment, cold air blows in from one end toward the other, so air temperature rises and air velocity weakens toward the rear, producing the pattern of "thoroughly frozen at the front, under-frozen at the back". The TCA tunnel quick freezer uses a longitudinal opposed-air blowing design that distributes cold air evenly across the entire tunnel cross-section, removing this attenuation problem structurally. This is also why "even freezing" comes from duct design rather than from simply adding refrigeration capacity: more capacity only overcools the front section while the rear stays uneven.
The machine carries an intelligent variable-frequency control system with stepless speed regulation, so mesh-belt speed and freezing time can be flexibly adjusted to the size, thickness and type of different ingredients, precisely matching the freezing process required by each product. Whether the product is frozen staples such as fruit and vegetables, french fries, pasta products, glutinous rice balls or dumplings, or peeled shrimp, seafood, all kinds of meat and prepared foods, the machine delivers precise quick freezing — one machine, many uses, with outstanding adaptability.
The equipment runs fully automatically and continuously with no need for constant manual supervision; it can run 24 hours a day without interruption and connect seamlessly to upstream washing, pre-treatment and sorting lines for a genuinely closed automated production loop. The intelligent temperature control system holds tunnel temperature precisely and stably, with small fluctuation and steady refrigeration efficiency, so long-run energy consumption is lower — energy consumption per kilogram of food is far below that of conventional equipment.
Structures such as single-belt, double-belt and double-layer models can be customized to the customer's plant space, production capacity and product categories, fitting individual production scenarios. The machine has an intelligent touch-screen interface with parameters that are clear at a glance and easy to learn and operate, plus multiple safety protection mechanisms for stable, safe and reliable running. Customization matters because the structure must match the plant: at the same capacity, a single-belt model is longer and a double-belt model is wider, so selection should start from what the site allows, not from the capacity figure.
| Common problem | Root cause | Solution |
|---|---|---|
| Incomplete freezing | Cold air attenuates along the tunnel; rear-section air temperature rises and velocity falls short | Longitudinal opposed-air blowing evenly covers the full cross-section |
| Uneven freezing | Product stacks on the mesh belt with uneven spacing, so air exposure is uneven | Stepless speed regulation of mesh-belt speed and freezing time to match each product type |
| Water loss and mushiness after thawing | Freezing too slowly lets large ice crystals puncture the cell structure | Ultra-fast freezing, passing through the ice crystal formation zone in 15-20 minutes |

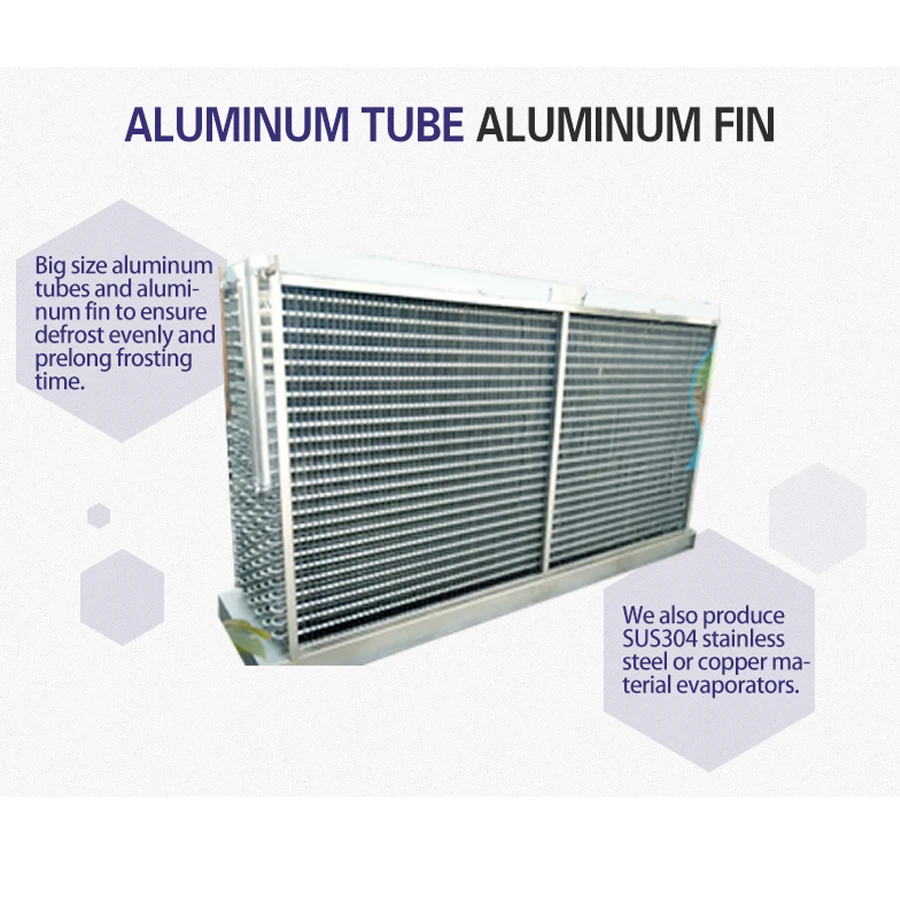

| High energy consumption | Poor enclosure insulation and cold-energy loss, with frequent defrosting | Double-layer stainless steel polyurethane sandwich insulation panels + high-efficiency heat-exchange evaporator, with long intervals between defrosting |
What these four problems have in common is that they are all process control issues, not finished-product spot-check issues — by the time under-frozen or watery product is detected, it is too late to rework. That is why selection should focus not on the nominal minimum temperature, but on air-velocity uniformity and temperature stability under full-load continuous operation.
Buying a single tunnel quick freezer and configuring a complete pre-freezing preparation line are two different projects. Quick freezing is the final step in food processing, and the performance of every upstream stage propagates into the freezing tunnel.
| Stage | Function | Interface with the freezing stage |
|---|---|---|
| Washing | Removes surface contaminants and microorganisms | Too much surface water raises the frosting load inside the tunnel |
| Pre-treatment | Cutting, blanching, batter coating and breading, etc. | Cut size and thickness directly determine the required freezing time |
| Sorting | Grading by specification and rejecting substandard items | Specification consistency determines freezing uniformity within a batch |
| Quick freezing | Rapid passage through the ice crystal formation zone to freeze and set the product | The core stage; must match the material state produced by all upstream stages |
| Packaging and frozen storage | Isolates moisture and oxygen, then into frozen storage | Whether the discharge temperature meets target directly determines shelf life |
The place where a full line most often goes wrong is the match between pre-treatment and quick freezing: doubling the cut thickness often more than doubles the required freezing time, and batter-coated or breaded products carry high surface moisture that markedly increases the frosting load in the front section of the tunnel. When selecting equipment, therefore, provide the supplier with the whole line's material parameters — piece size, piece weight, surface condition and batch quantity — rather than a single daily-output figure.
The TCA tunnel quick freezer can connect seamlessly to upstream washing, pre-treatment and sorting lines to achieve closed-loop automated production.
| Dimension | Content |
|---|---|

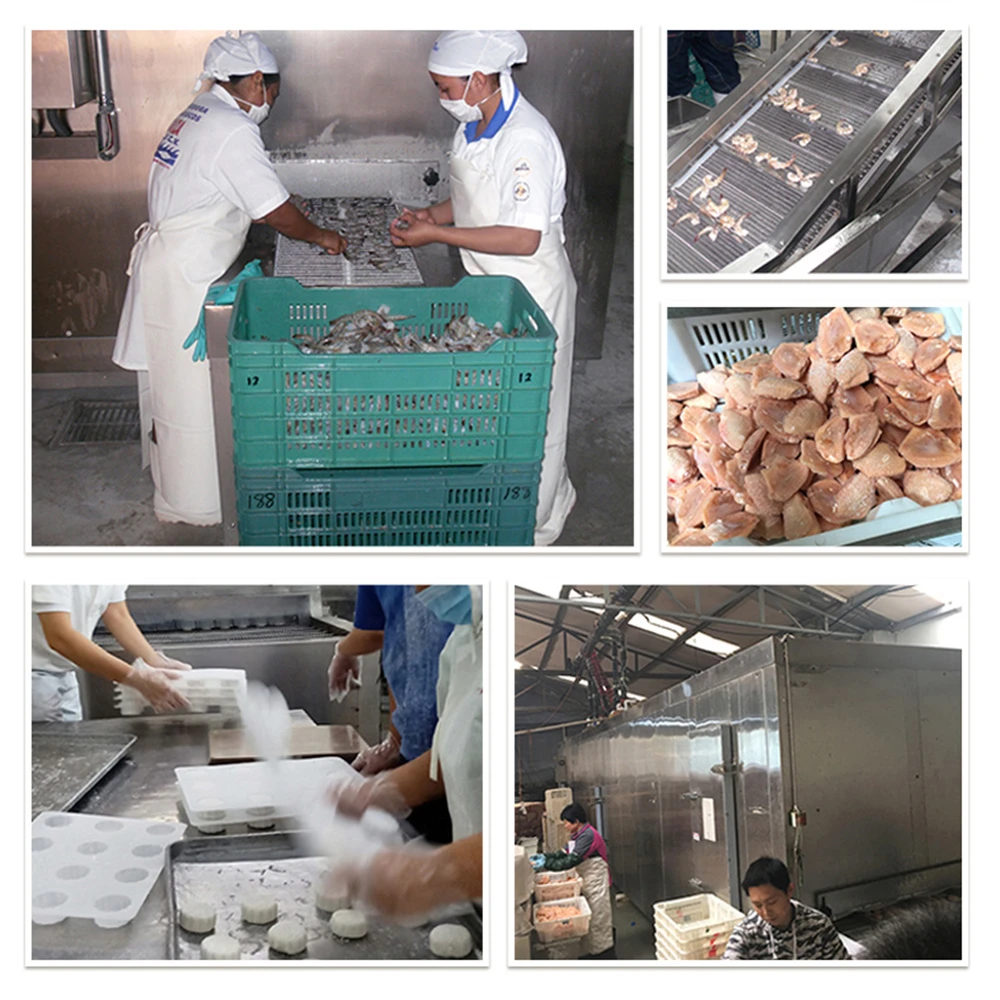

| Suitable scenarios | Frozen fruit and vegetables, snack foods, rice and wheat products, frozen seafood, livestock and poultry meat, prepared dishes |
| Typical customers | Prepared-dish processors, frozen food manufacturers, fresh-food deep processors |
| Processable products | Frozen staples such as fruit and vegetables, french fries, pasta products, glutinous rice balls and dumplings; peeled shrimp, seafood, all kinds of meat and prepared foods |
| Finished-product value | Locks in the ingredient's original flavor, color and nutrients and greatly extends its shelf life |
The value of the tunnel quick freezer also lies in its category extendability: change one process parameter on the same machine and it moves from frozen dumplings to frozen peeled shrimp. Manufacturers no longer need a separate line for every category, so the product portfolio can shift quickly with market trends.
What is the difference between a tunnel quick freezer, a spiral quick freezer and a fluidized quick freezer?
All three are continuous freezers; the difference lies in conveying and suitable product forms. A tunnel quick freezer uses straight-line conveying and suits single items that need to lie flat and set, such as rice and wheat products, prepared foods and breaded products. A spiral quick freezer uses a three-dimensional spiral multi-layer conveying path, taking up less floor space at the same capacity and suiting small and medium plants. A fluidized quick freezer uses strong air to lift the material and suits individually quick frozen granular items such as green peas and corn kernels. Selection should start from the material form and plant conditions, not from the capacity figure.
How low can the tunnel quick freezer go, and how long does freezing take?
The machine can create an ultra-low-temperature freezing environment below −35°C. Food passes quickly through the ice crystal formation zone within 15-20 minutes, and the product core temperature drops to below −18°C. The actual time required varies with ingredient size, thickness, type and infeed temperature, so we recommend a trial run with your own material to obtain a measured curve.
Are incomplete freezing and uneven freezing the same problem?
No. Incomplete freezing usually comes from cold air attenuating along the tunnel, so rear-section air temperature and velocity fall short — this is solved by duct design. Uneven freezing usually comes from product stacking and uneven spacing on the mesh belt, causing uneven air exposure — this is solved by stepless speed regulation and proper loading practice. The TCA tunnel quick freezer combines longitudinal opposed-air blowing with intelligent variable-frequency speed control to address both.
Can the equipment be customized?
Yes. Single-belt, double-belt and double-layer structures can all be customized to plant space, production capacity and product categories. At the same capacity, a single-belt model is longer and a double-belt model wider, so we suggest providing your plant floor dimensions before fixing the structure.
Is cleaning and maintenance easy, and what does after-sales service include?
The machine has a simple integrated structure with no hygiene dead zones, and the water defrosting design leaves no cleaning residue; all internal food-contact components are SUS304 stainless steel, corrosion-resistant and easy to clean, making routine disassembly, cleaning and servicing straightforward. After-sales service provides one-stop support covering equipment customization, site planning, installation and commissioning, technical training and lifetime service, and every machine is strictly tested and commissioned before it leaves the factory.
Shandong TCA Intelligent Technology Co., Ltd. (TCA) focuses on integrated R&D, production, sales and after-sales service of food deep-processing equipment. With years in the industry, the company has mature production processes, a complete quality inspection system and a professional technical team. Every machine is strictly tested and commissioned before leaving the factory, giving dependable quality and stable performance. We also offer customers one-stop services covering equipment customization, site planning, installation and commissioning, technical training and lifetime after-sales support, so buyers can purchase with peace of mind and operate with confidence. Looking ahead, TCA will keep deepening its work in food refrigeration equipment, continually optimizing quick-freezing technology and upgrading equipment performance, and helping food processing companies at home and abroad move toward intelligent, efficient and standardized production with high-quality products, cost-effective solutions and high-standard service.
Related equipment: quick freezer equipment, spiral quick freezer, fluidized quick freezer, vacuum freeze drying equipment.
Need a tunnel quick freezer proposal and quote? Send us the food category and form you plan to process (individual pieces / batter-coated / rice and wheat products / aquatic products), the piece size and weight, target capacity, required discharge core temperature and your plant floor dimensions. On that basis we will issue the equipment structure, capacity plan and quotation, and we can arrange a trial run with your material.
