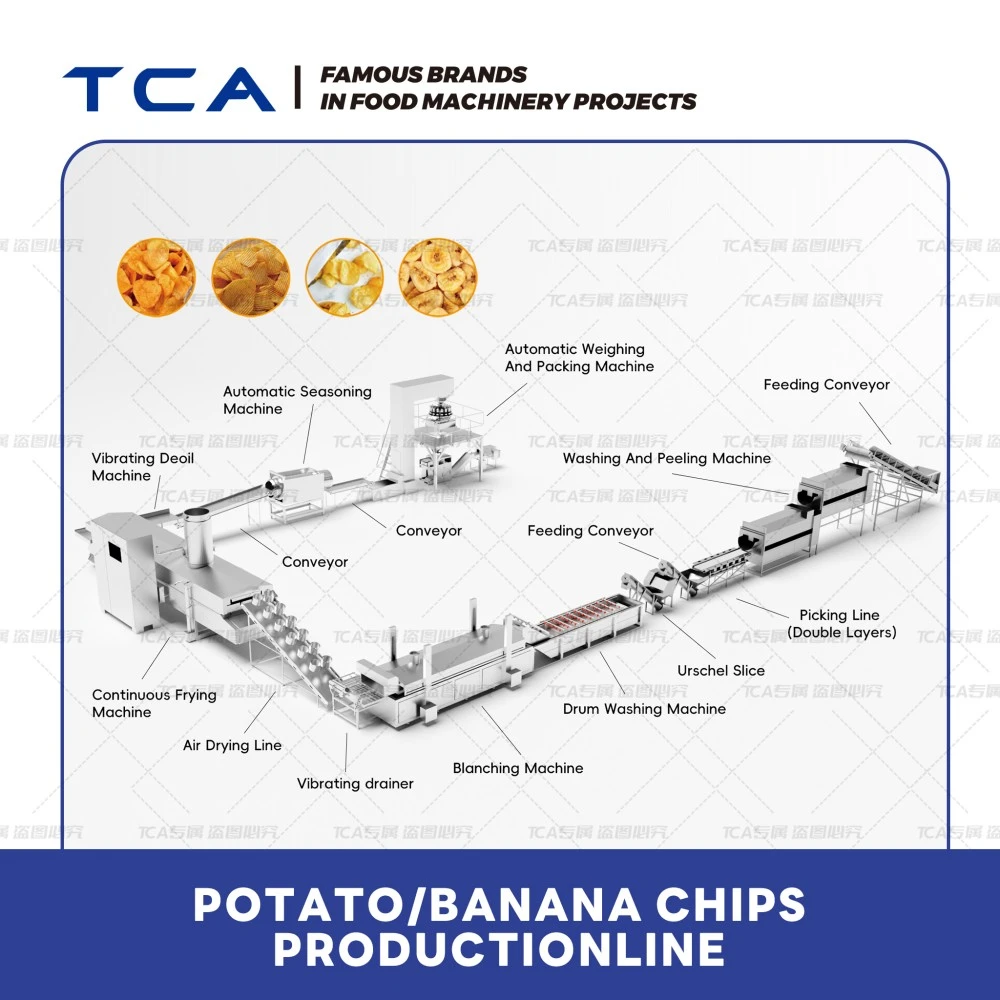

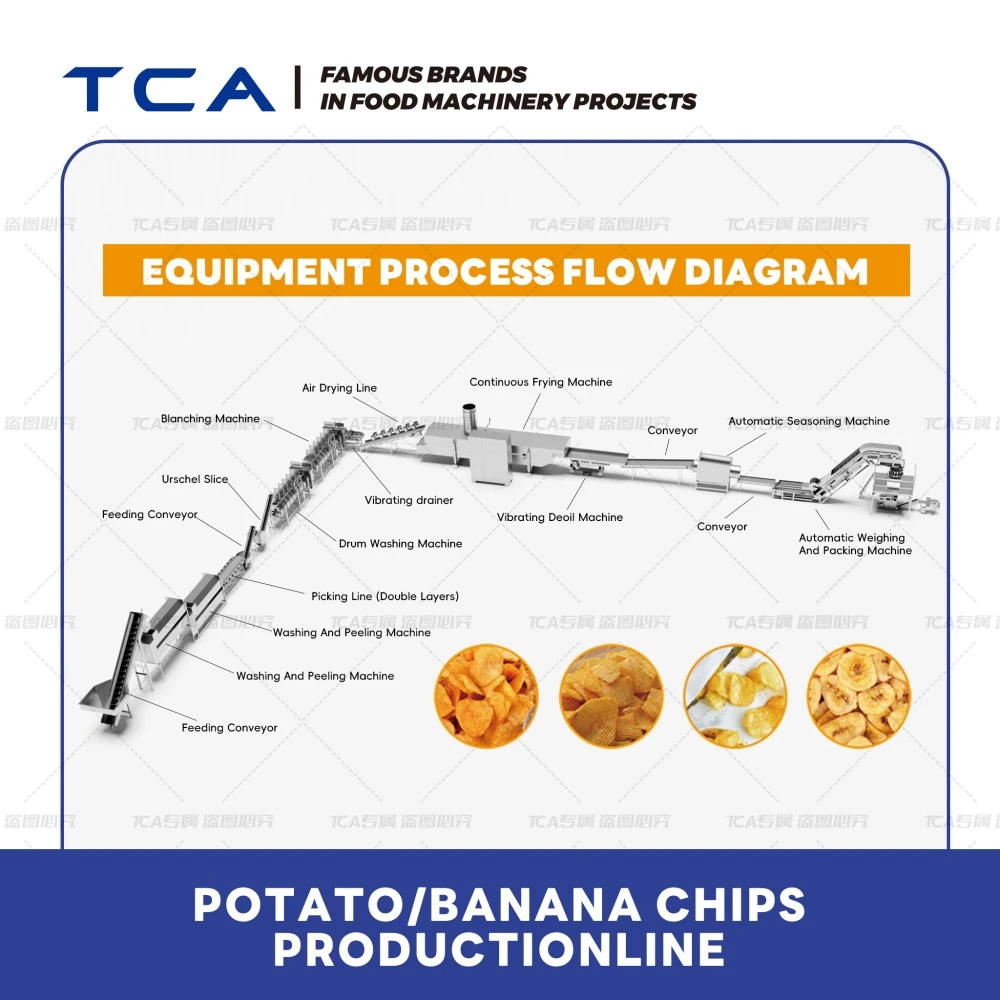

Potato Chip Production Line

1. Raw Material Selection and Acceptance

The main raw material for potato chip production is the potato. The quality requirements of the raw materials directly affect the taste and appearance of the final product. Ideal raw materials should have the following characteristics:

• Regular potato shape, smooth surface, no sprouting or greening

• Dry matter content ≥20%, reducing sugar content ≤0.5%

• White flesh, no hollow or black core defects

• Single potato weight preferably 150-300 grams

2. Cleaning process

Raw material cleaning is the first step in potato chip production, aiming to remove dirt, impurities, and microorganisms from the surface of potatoes. The cleaning process typically includes the following equipment:

Soaking tank: Uses a counter-current soaking method to soften surface dirt.

Drum washing machine: Utilizes rotating drums and spray devices for efficient cleaning.

Bubble washing machine: Enhances the cleaning effect through bubble vibration.

3. Peeling process

Function: Simultaneously performs washing and peeling processes, removing surface dirt and the outer skin layer.

Working Principle: Employing a diamond-lined or brush structure, potatoes rotate and rub against each other, combined with high-pressure water jet washing, efficiently removing the skin.

Technical Advantages: Continuous feeding and discharging, low loss rate, and efficiency far exceeding traditional manual methods.

4. Picking line

Function: To manually remove potatoes that still have defects (rotten, sprouted, deformed) after washing, and to trim any substandard parts.

Design Features: Typically a conveyor belt workbench, it is easy to operate manually and is one of the few parts of the entire production line that requires manual intervention.

Cutting and Shaping Stage

5. Chipper (potato chip maker)

Function: Cuts peeled potatoes into uniform thin slices.

Key Technical Parameters: Slice thickness adjustable from 1-6mm, typical thickness around 1mm.

Structural Features: Equipped with high-precision blades, producing a smooth, burr-free cut with uniform thickness, ensuring consistent heating during frying.

Additional Functions: Some models can simultaneously slice and cut into strips; changing the mold switches the product form.

Preprocessing Stage

6. Rinsing Line (Bubble Washing Machine)

Function: Cleans the free starch on the surface of potato chips after slicing, preventing them from sticking together during frying.

Working Principle: Utilizes high-pressure bubbles and water flow to tumble the potato chips in water, thoroughly removing surface starch.

7. Blanching Machine (Color Protection Machine)

Function: Uses high-temperature hot water to protect color, sterilize, and deactivate enzymes.

Process Effect: Gelatinizes the starch on the surface of the potato chips, forming a protective layer that fixes the color and prevents oxidative browning,

laying the foundation for a crispy outer shell during subsequent frying.

Additives: Can be added with edible salt, sodium organic phosphate, citric acid, glucose powder, etc., to maintain the bright color of the potato chips.

8. Cooling/Dehydration Equipment

Function: Removes moisture adhering to the surface of the blanched potato chips.

Equipment Types:

Vibrating Dehydrator: A vibrating screen with strong airflow disperses the potato chips and dries the surface moisture.

Centrifugal Dehydrator: Utilizes centrifugal force for higher efficiency.

Importance: Dehydration before frying significantly shortens frying time, reduces oil absorption, and improves texture.

Deep Frying Stage

9. Continuous Fryer

Core Function: Reduces the moisture content of potato chips from 80% to approximately 2%, resulting in a crispy texture.

Temperature Control Range: Adjustable from 0-300℃, with a temperature control accuracy of ±1℃.

Frying Time: Adjustable from 20 seconds to 15 minutes.

Heating Method: Multiple options available, including electric, gas, steam, and heat transfer oil.

Structural Design Highlights:

Double-layer mesh belts: Prevents potato chips from floating, ensuring even frying.

Automatic oil filtration system: Continuously filters oil residue, extending oil lifespan.

Automatic oil replenishment system: Maintains a constant oil level.

Mesh belt lifting system: Facilitates equipment cleaning and maintenance.

Technological Frontier: Vacuum low-temperature frying.

Principle: Lowers the boiling point of oil in a vacuum environment, achieving low-temperature frying (typically below 100℃).

Advantages: Retains more nutrients, reduces oil intake, making potato chips healthier.

Post-processing Stage

10. Oil Degreasing Machine (Draining Line)

Function: Removes residual oil from the surface of fried potato chips, reducing the oil content of the finished product.

Technology Types:

Vibrating Oil Degreasing: Removes excess oil using a vibrating screen.

Electric Heating Oil Degreasing Machine: Utilizes an electric heating device for constant temperature operation, resulting in a higher oil removal rate and overcoming the drawbacks of high oil content and greasy texture in potato chips.

Target Oil Content: Typically controlled between 30% and 40%.

11. Seasoning Machine (Drum Seasoning Machine)

Function: Evenly adds seasoning to potato chips.

Working Principle: Potato chips are evenly tumbled in a rotating drum. Seasoning is added using a sprinkling or spraying method, resulting in even seasoning and preventing chipping.

Drum Seasoning: Potato chips are mixed with seasoning inside the rotating drum; suitable for powder seasoning.

Spray Seasoning: Seasoning liquid is atomized and sprayed onto the surface of potato chips; suitable for sauce-type seasoning.

Flavor Options: Original, tomato, spicy, barbecue, onion, curry, and over 30 other flavors.

12. Cooling and Sorting Line

Function: Cools and degrades potato chips, while removing defective products (burnt, broken, misshapen, etc.)

Importance: Cooled potato chips are crispier and easier to package.

Packaging Stage

13. Automatic Packaging Machine

Functions: Completes packaging processes including bag making, filling, sealing, and coding.

Nitrogen-filled packaging: Nitrogen gas is filled into the packaging bag to replace oxygen, effectively preventing potato chips from oxidizing and breaking, and extending shelf life.

Optional configurations: Multi-head scale for accurate weighing, metal detector to ensure food safety.

Modern potato chip production lines represent a deep integration of food engineering, mechanical automation, and thermodynamics. From a fresh potato to a bag of golden, crispy chips, the entire process takes only minutes, thanks to the precise coordination of more than ten processes, including washing, slicing, blanching, frying, and seasoning. With continuous innovation in technologies such as vacuum low-temperature frying and intelligent temperature control, potato chip production is developing towards greater efficiency, healthier production, and smarter technology.

Shandong TCA Intelligent Technology Co., Ltd. is a global manufacturing supplier specializing in comprehensive solutions for food processing projects. Its core focus is on the research and development and sales of complete sets of equipment for processing potatoes, fruits and vegetables, and meats. With its strong technological R&D capabilities, comprehensive end-to-end service system, and global footprint, it has become a leading enterprise in the potato chip processing equipment field. Its potato chip production lines, characterized by high automation, stable equipment performance, and excellent cost-effectiveness, are suitable for medium to large-scale food processing enterprises with large-scale production needs, plans to expand into international markets, or those requiring complete solutions.
