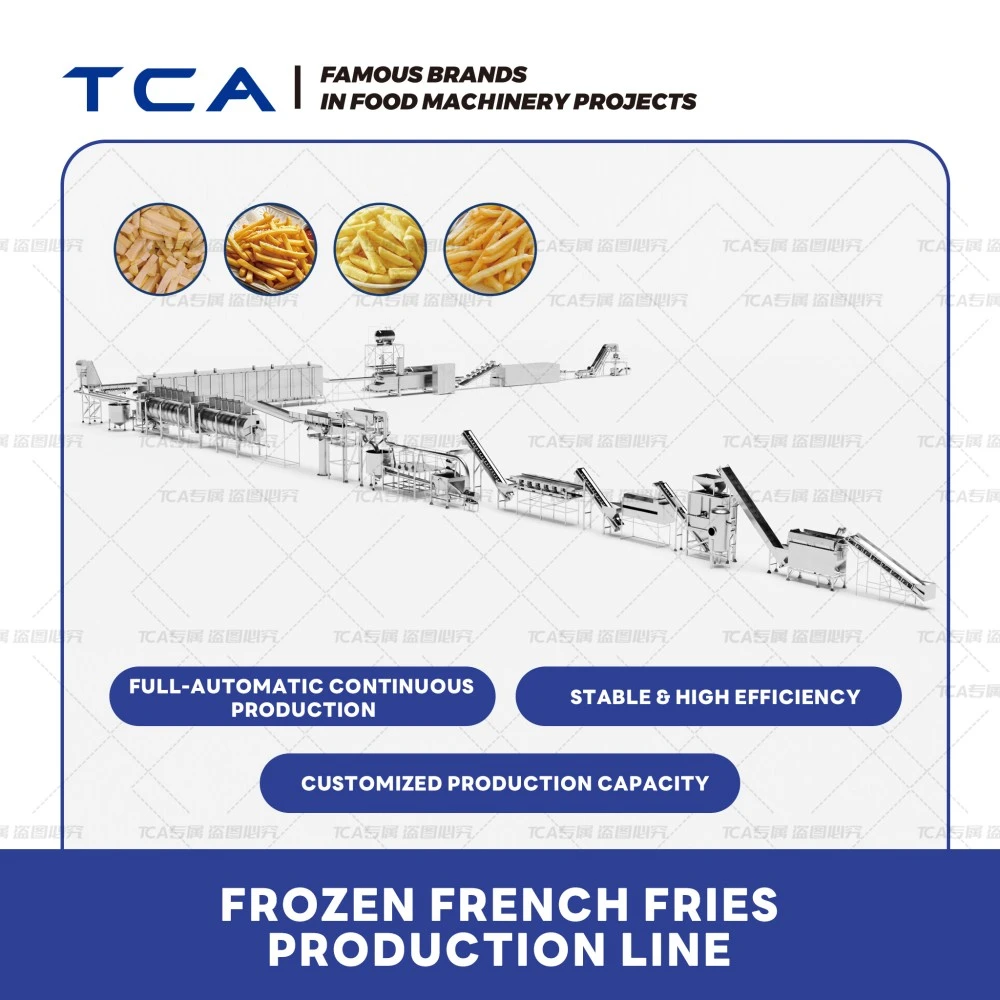

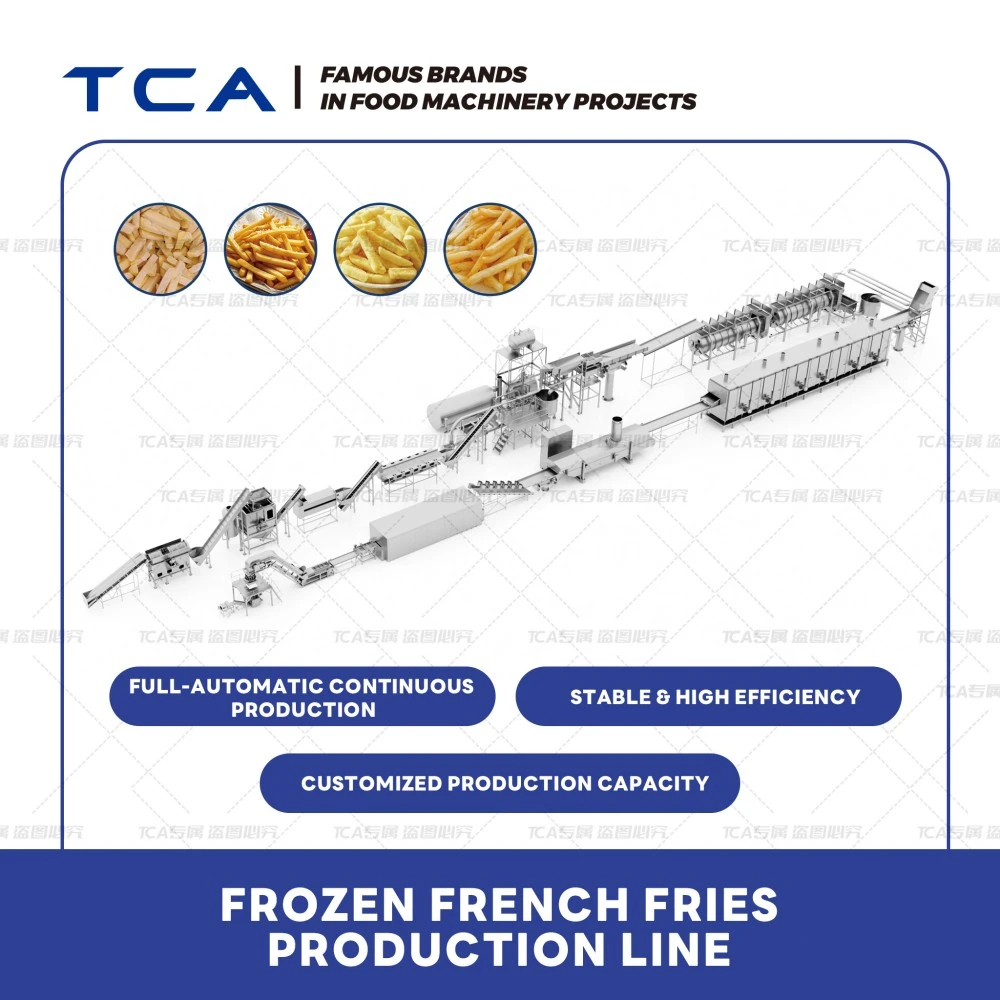

Frozen French Fries Production Line

Machine Parameters

From a single potato to a bag of frozen French fries, the process involves eight core steps.

Step 1: Raw Material Receiving and Storage

Purpose: To prepare potatoes in optimal condition for processing.

Process:

1. Potatoes of specialized processing varieties (such as Shepody, Russet Burbank, Atlantic, etc.) are transported to the factory.

Raw Material Requirements:

Dry matter content: 18-24% (determines fry yield and texture)

Reducing sugar content: ≤0.25% (prevents excessive browning during frying)

Octagonal shape, length ≥8cm

No sprouting, no greening, no hollow or black cores

2. After initial screening, clods of soil, stones, and severely damaged potatoes are removed.

The potatoes are placed in a temperature- and humidity-controlled storage warehouse (usually 8-12°C). This is not simply storage, but a crucial "saccharification" process: allowing the potatoes to convert some of their starch into sugar at a low temperature, achieving the ideal golden color after frying (too low a sugar content results in a pale color, too high a content leads to scorching).

Step 2: Cleaning and Sorting

Objective: To thoroughly clean and grade potatoes by size in preparation for uniform processing.

Process:

1. De-stone Washing: Potatoes enter a drum or water jet washing machine, where vigorous water flow and friction remove all dirt, sand, and impurities.

2. Size Grading: Potatoes are graded by size using a drum or weight-based grading machine. Larger potatoes are used for cutting into strips, while smaller potatoes are used for cutting into short strips or other products, ensuring uniform cutting specifications in subsequent processes.

Step 3: Peeling and Trimming

Objective: To remove inedible skin and defects.

Process:

1. Steam Peeling (Mainstream Technology): Potatoes are briefly processed (about ten seconds) in a high-pressure steam chamber.

The high-temperature steam instantly cooks and loosens the skin.

Then, the pressure is rapidly released, causing the skin to burst due to the pressure difference between the inside and outside.

Finally, the loosened skin is easily washed away with a high-pressure water jet or a rotating rubber roller. This method has extremely low loss (only about 8-12%) and is environmentally friendly.

2. Trimming: After peeling, the potatoes pass through a conveyor belt for manual or AI-powered intelligent visual inspection.

Residual sprouts, black spots, green parts, bruises, and any defects are removed to ensure the quality of the final product.

Step 4: Cutting and Blanching

Objective: To cut the fries into standard shapes and perform crucial pre-treatment for shaping.

Process:

1. Cutting: Trimmed potatoes are fed into a high-speed water jet cutter or centrifugal cutter, instantly cut into standard square-shaped fries (common size: 9mm x 9mm).

2. Rinsing: The cut fries are immediately rinsed with clean water to remove free starch from the surface and prevent sticking during frying.

3. Blanching (Pre-cooking):

This is one of the most critical steps determining the texture and color of the fries.

The fries are placed in a hot water bath at 70-95°C for several minutes.

Function:

Partially cooks the starch, forming a gel layer on the surface of the fries, allowing them to maintain their shape and prevent breakage during frying.

Removes some sugars and amino acids, precisely controlling the degree of subsequent Maillard reaction to ensure a uniform golden-brown color after frying, rather than an excessively dark brown.

Inactivates enzymes to prevent browning.

Step 5: Dehydration and Drying

Purpose: To remove excess moisture from the surface of French fries.

Process: French fries leaving the blanching tank have a large amount of moisture on their surface. They are then passed through a high-powered air knife or centrifugal dehydrator to remove most of the surface water film.

Importance: This significantly reduces energy consumption during subsequent frying, minimizes oil splattering, and improves frying efficiency and crispiness of the fries.

Step 6: Frying and Degreasing

Purpose: To cook, shape, color, and impart flavor.

Process:

1. Frying: The fries enter a continuous fryer (oil temperature typically 170-185°C) and travel on a special conveyor belt for 1-3 minutes. This process dehydrates, cooks, and induces the Maillard reaction, resulting in a golden color and unique flavor.

Degreasing: After frying, the fries immediately enter a centrifugal degreasing machine at high speed to remove excess oil adsorbed on the surface, controlling the final oil content.

Step 7: Quick-freeze

Objective: To lock in quality and achieve long-term preservation.

Process: Hot fries are immediately placed in a quick-freezing tunnel (spiral or straight) at below -35°C. Within 15-20 minutes, the center temperature of the fries rapidly drops to below -18°C. This rapid passage through the ice crystal formation zone maximizes the preservation of the fries' cellular structure, preventing them from becoming soggy and watery after thawing.

Step 8: Grading, Testing and Packaging

Objective: To obtain standardized, safe, and reliable products.

Process: Length Grading: Frozen fries are graded by length (long, medium, and short) using a vibrating mesh screen to meet different customer needs.

Metal Detection: Ensures the product is free of any metal foreign objects.

Weighing and Packaging: The system automatically weighs the contents according to the set weight (e.g., 2kg/bag).

The contents are then placed into food-grade packaging bags lined with aluminum foil (moisture-proof and oxygen-barrier).

Nitrogen gas is introduced before sealing to inhibit oxidation and extend shelf life.

Finally, the bags are boxed, stacked, and stored in a -18°C cold storage facility until shipment.

The Second Half of the Fast Food Restaurant Experience: Final Frying

When the frozen fries arrive at the restaurant, their journey isn't over yet: No need to thaw, they are immediately plunged into specialized frying oil at 190-200°C.

The second frying time is approximately 2-3 minutes, until the outside is a perfect golden brown and the inside is thoroughly heated.

After draining the oil, sprinkle with a little salt, and they become the perfect, hot, crispy-on-the-outside, tender-on-the-inside fries for our tables.

Product quality standards

Shandong TCA Intelligent Technology Co., Ltd. is a global manufacturing supplier specializing in comprehensive solutions for food processing projects. Its core focus is on the research and development and sales of complete sets of equipment for processing potatoes, fruits and vegetables, and meats. With its strong technological R&D capabilities, comprehensive end-to-end service system, and global footprint, it has become a leading enterprise in the French fry processing equipment field. Its French fry production lines, characterized by high automation, stable equipment performance, and excellent cost-effectiveness, are suitable for medium to large-scale food processing enterprises with large-scale production needs, plans to expand into international markets, or those requiring complete solutions.
