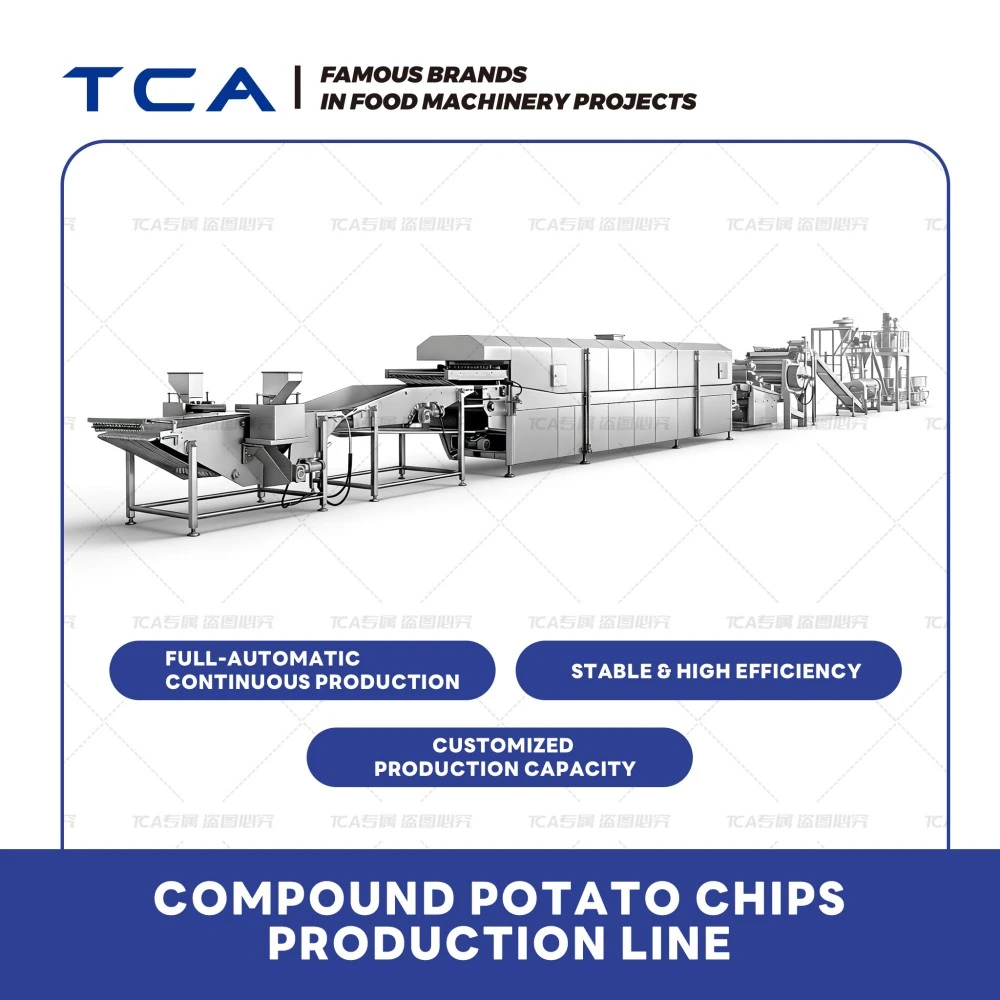

Compound Potato Chip Production Line

The core difference between compound potato chips and fresh-cut potato chips

Process Overview

Raw Material Proportioning → Mixing and Stirring → Sheeting and Forming → Die Cutting and Shaping → Waste Material Recycling → Frying/Baking → Oil Removal → Seasoning → Cooling → Packaging

Detailed Explanation of Key Equipment

1. Mixing Machine (Mixing Equipment)

Function: Evenly mixes potato flour, potato starch, cereal flour, and various auxiliary ingredients according to the formula ratio, and adds an appropriate amount of water to form a dough.

Technical Highlights:

Adjustable mixing speed ensures thorough blending of dry and wet materials.

Precise control of mixing time avoids over-mixing and damage to the gluten structure.

The equipment is made of SUS304 stainless steel, meeting food hygiene standards.

Typical Formula Composition:

Potato flour: 40%-60%

Potato starch: 20%-30%

Cereal flour (rice flour/corn flour): 10%-20%

Seasonings, emulsifiers, water: as needed

2.Leather processing machine (tablet pressing equipment)

Function: Presses mixed dough into thin sheets of uniform thickness.

Core Technology: Three-roller structure

Uses three rollers for progressive pressing, with the roller gap gradually decreasing.

The final roller gap is less than 1 mm, ensuring uniform sheet thickness.

Smooth roller surfaces prevent sticking.

The thickness of the pressed sheet directly affects the finished product's texture.

Process Parameters:

Final Thickness: 0.8-1.2 mm

Sheet Width: Matched according to the width of the forming mold.

3. Forming Machine

Function: Cuts pressed dough sheets into potato chip blanks of specified shapes.

Technical Structure: Roller cutting structure

Utilizes a die roller cutting method for continuous stamping and forming.

Can produce various shapes such as round, oval, and arc.

Smooth cutting edges, no burrs.

The arc design is a typical feature of composite potato chips (facilitating stacking in tubes).

Core Advantages: Consistent shape and height, facilitating even frying and packaging stacking.

4.Waste Material Return Mechanism

Function: Recovers waste materials from punching and returns them to the mixing process for reuse.

Importance:

Improves raw material utilization and reduces production costs.

Waste materials must be recovered promptly to prevent drying and deterioration.

Closed-loop design enables continuous production.

Technical Features: Employs a conveyor belt or pneumatic conveying system to automatically return waste materials to the mixing machine.

5.Frying Machine

Function: Fries the formed potato chip blanks to cook them and create a crispy texture.

Core Technical Features:

* **Mold Transmission Structure:** The raw chips enter the frying zone along with the forming mold, maintaining their shape.

* **Chip Removal Device:** A dedicated chip removal device is installed at the frying outlet to automatically separate the fried semi-finished potato chips from the forming mold.

* **Continuous Frying:** Continuous conveying using a mesh belt or mold chain enables mass production.

Technical Parameters (Typical Production Line):

Technical challenge: The precision of the fit between the composite potato chip forming mold and the fryer directly affects the success rate of product demolding; the chip removal device is the key to ensuring continuous production.

6. Oil Removal Machine

Function: Removes residual oil from the surface of fried potato chips, reducing the oil content of the finished product.

Working Principle:

Vibration Degreasing: Removes excess oil through high-frequency vibration.

Centrifugal Degreasing: Utilizes centrifugal force for efficient oil removal.

Hot Air Assistance: Combines hot air blowing to further reduce oil content.

Target Oil Content: 25%-35% (Slightly lower than fresh-cut potato chips)

7. Seasoning Machine (Drum Seasoning Machine)

Function: Evenly adds seasoning to potato chips.

Working Principle: Potato chips are evenly tumbled in a rotating drum.

Seasoning powder/liquid is added using a sprinkling or spraying method.

Even seasoning is achieved without breaking the chips.

Common Flavors: Original, Barbecue, Tomato, Cheese, Sour Cream & Onion, etc.

8. Cooling Conveyor Line

Function: Cools seasoned potato chips to room temperature for easier packaging.

Technical Requirements: Natural cooling or forced air cooling

Crispyer chips after cooling

Breakage must be avoided during the conveying process.

9. Automatic Packaging Machine

Functions: Completes packaging processes including bag making, filling, sealing, and coding.

Packaging Forms:

* Tube Packaging: Typical packaging for composite potato chips; curved design for easy stacking.

* Bagged Packaging: Nitrogen-filled packaging to extend shelf life.

Key Components:

* Multi-head scale for accurate weighing

* Metal detector to ensure food safety

* Nitrogen filling device to prevent oxidation.

Baked Compound Potato Chip Production Line (Non-Fried)

Besides fried compound potato chips, there is also a baked production line, catering to the trend of healthy consumption.

Baked Production Line Flow:

Flour Mixing → Dough Making → Shaping → Waste Material Recycling → Oil Spraying → Tunnel Oven → Cooling → Seasoning → Packaging

The core difference from fried type

Advantages of Baked Chip Production:

Both are whole grain products and non-fried foods, catering to the trend of healthy consumption. The compound potato chip production line uses potato flour, starch, and grain flour as raw materials. Through the core process of "flour mixing → dough making → shaping → frying/baking," it produces potato chips with regular shapes and a crispy texture. Compared to fresh-cut potato chips, the compound potato chip production line places greater emphasis on dough ratios and pressing precision; the forming molds and chip-removing devices are key core technologies. With the rise of healthy consumption trends, baked compound potato chip production lines are ushering in a broader market space.

Shandong TCA Intelligent Technology Co., Ltd. is a global manufacturing supplier specializing in comprehensive solutions for food processing projects. Its core focus is on the research and development and sales of complete sets of equipment for processing potatoes, fruits and vegetables, and meats. With its strong technological R&D capabilities, comprehensive end-to-end service system, and global footprint, it has become a leading enterprise in the potato chip processing equipment field. Its compound potato chip production line, with its high degree of automation, stable equipment performance, and excellent cost-effectiveness, is suitable for medium to large-scale food processing enterprises with large-scale production needs, plans to expand into international markets, or those requiring complete solutions.
