Potato Hash Brown Production Line

Detailed Explanation of Core Processes and Equipment

1. Raw material pretreatment (washing and peeling)

Equipment: drum cleaning machine + wool roller peeling machine / steam peeling machine.

workmanship

Cleaning: High-pressure spraying + mud removal with a brush, 2-3 minutes.

Peeling: Mechanical friction (commonly used): Peeling rate ≥95%, loss < 3%.

Steam peeling (high-end line): Short-duration steam at 160–180℃ results in crispy and easily removable skin, with lower loss.

Alkali peeling (minimal use): 1%–3% NaOH, 75–90℃, 5–10 s, thorough rinsing required to prevent residue.

2. Steaming and boiling to make mud

Equipment: continuous steam digester + double-screw mud mixer/colloid mill.

workmanship

Steaming and boiling: 90–100℃, 10–15 minutes, until "a wooden stick can be easily pierced through", fully cooked without a hard core.

Mashing: Cooked sweet potatoes are directly fed into a mashing machine to produce fine and granule-free potato mash; a colloidal mill is used for products with high fineness.

3. Cooling (key)

Equipment: Cooling conveyor belt / Vacuum cooler.

Process: Quickly cool the mashed potatoes to 20–30℃ to prevent excessive starch gelatinization and the ingredients (flour/starch) from being cooked, thereby avoiding sticky finished products, poor texture, and difficulty in shaping.

4. Ingredient mixing

Equipment: Horizontal mixer / Planetary mixing pot.

Formula (Industrialization Reference):

Mashed potatoes: 70%–80%

Flour / Starch: 8%–15% (for thickening and shaping)

Salt: 0.6%–1.0%

Sugar: 0.5%–1.0%

Spices: 0.2%–0.5%

Water: appropriate amount (adjust the hardness, form a ball when held by hand, and disperse easily when pinched)

Key points: Mix at low speed, avoid forming gluten and strings, and prevent excessive elasticity from affecting the shaping and texture.

5. Forming

Equipment: Fully automatic potato cake forming machine (with replaceable molds).

workmanship

Specifications: round / square / oval, thickness 8–12 mm, weight 50–100 g / piece (customizable).

Principle: Hopper → Feeding Roller → Mould Compression Forming → Conveyor Belt Delivery, with scraps automatically recycled and reused.

6. Coating / Wrapping (optional, to enhance crispiness and shape)

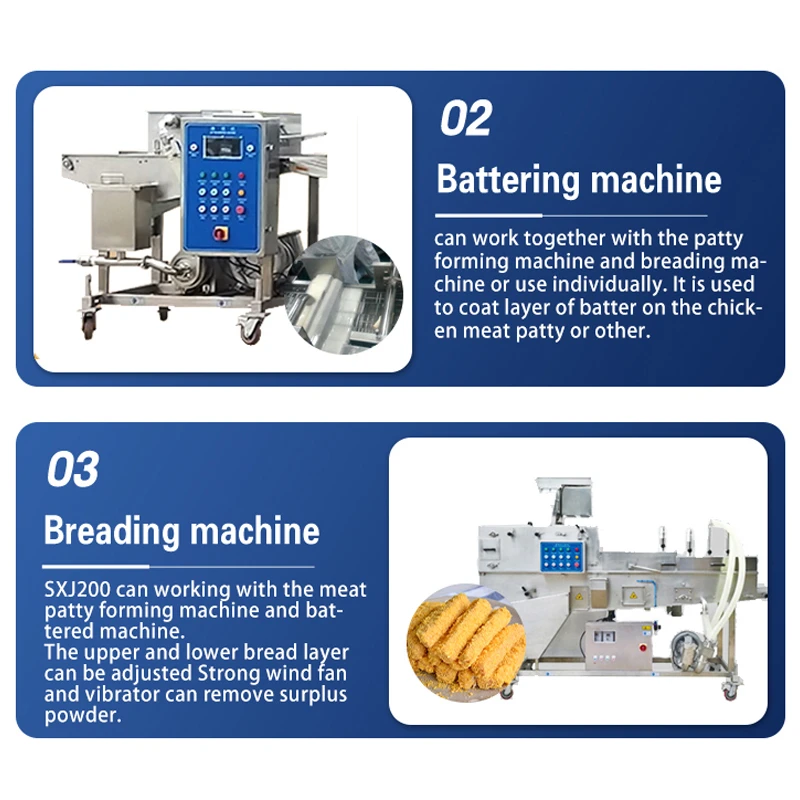

Equipment: dipping machine + coating machine.

workmanship

Coating: Dip coating with a thin batter (flour + starch + water) to prevent cracking and enhance golden color.

Coating: Bread crumbs / Starch powder, crispy outside and tender inside, not prone to sticking

7. Frying (mainstream cooking method, with baking as an alternative)

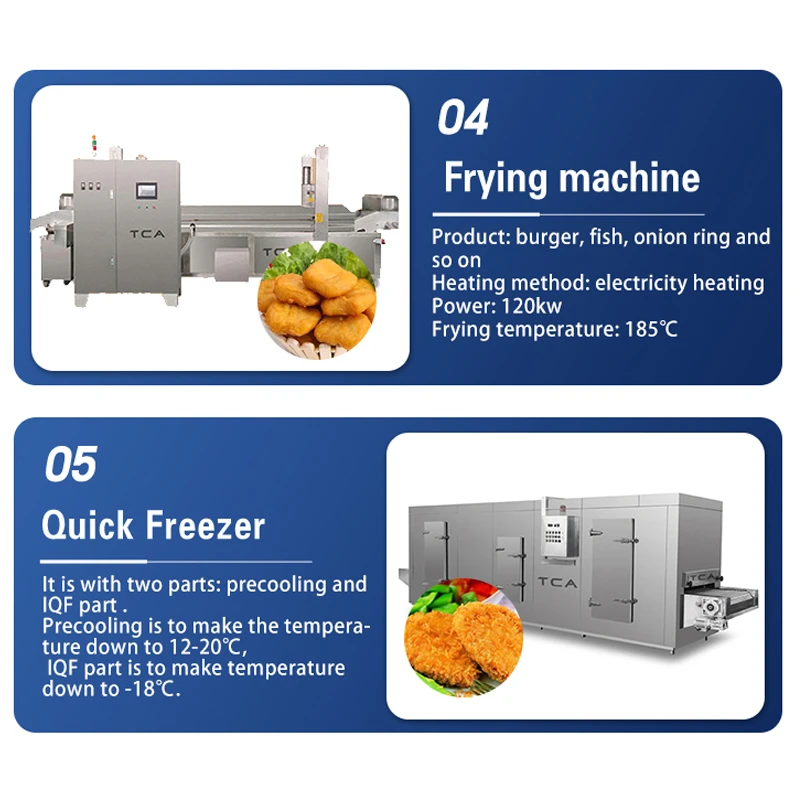

Equipment: Continuous mesh belt frying machine (with automatic temperature control, filtration, and oil replenishment).

workmanship

Oil temperature: 160–170℃ (for pre-frying and shaping), time 60–90 s per side, until the surface is golden and shaped, and the interior is fully cooked.

Alternative baking: 180–200℃, 8–12 minutes, low-fat and healthy, with a slightly dry texture.

8. Drain and cool the oil

Equipment: Vibrating oil draining machine + Air-cooled conveyor belt.

workmanship

Oil drainage: Vibration + wind shear to remove surface floating oil, with the oil content controlled at 15%–20%.

Cooling: Air-cool to room temperature to prevent softening and sticking due to residual heat, preparing for quick freezing.

9. Quick freezing (core of freshness preservation)

Equipment: Tunnel freezer (liquid nitrogen/freon refrigeration).

Process: -35 to -40℃, 15-30 minutes, with a core temperature of ≤-18℃. Rapid freezing forms small ice crystals, reducing cell damage, maintaining texture and moisture, and ensuring a shelf life of ≥12 months.

10. Metal detection and packaging

Equipment: Metal detector + Automatic packaging machine (nitrogen filling / vacuum).

workmanship

Metal detector: detects ferrous and non-ferrous metals to prevent impurities.

Packaging: Automatically bagging, sealing, and coding according to specifications (250 g/500 g/1 kg), and storing in the cold storage (-18℃)
