Potato Flakes Production Line: Process Flow, Key Parameters and Selection Guide

Because all of the solids are retained, the role of potato flakes in the food industry is not that of a "thickener" but of a main ingredient or functional component that contributes both flavour and function. That is what defines its customer base: convenience food plants, catering chain supply chains, bakeries and pet food manufacturers — not buyers who simply purchase starch.

Main Applications and Usage Ratios

This table also explains where the quality focus of potato flake manufacturing lies: for catering chains the priority is "good rehydration and consistent batches"; for pet food it is "no additives and all-natural"; for frozen foods it is "freeze tolerance". Different end uses place different demands on the drying and milling stages, so the target customer has to be established before equipment selection begins.

Complete Process Flow and Key Steps Explained

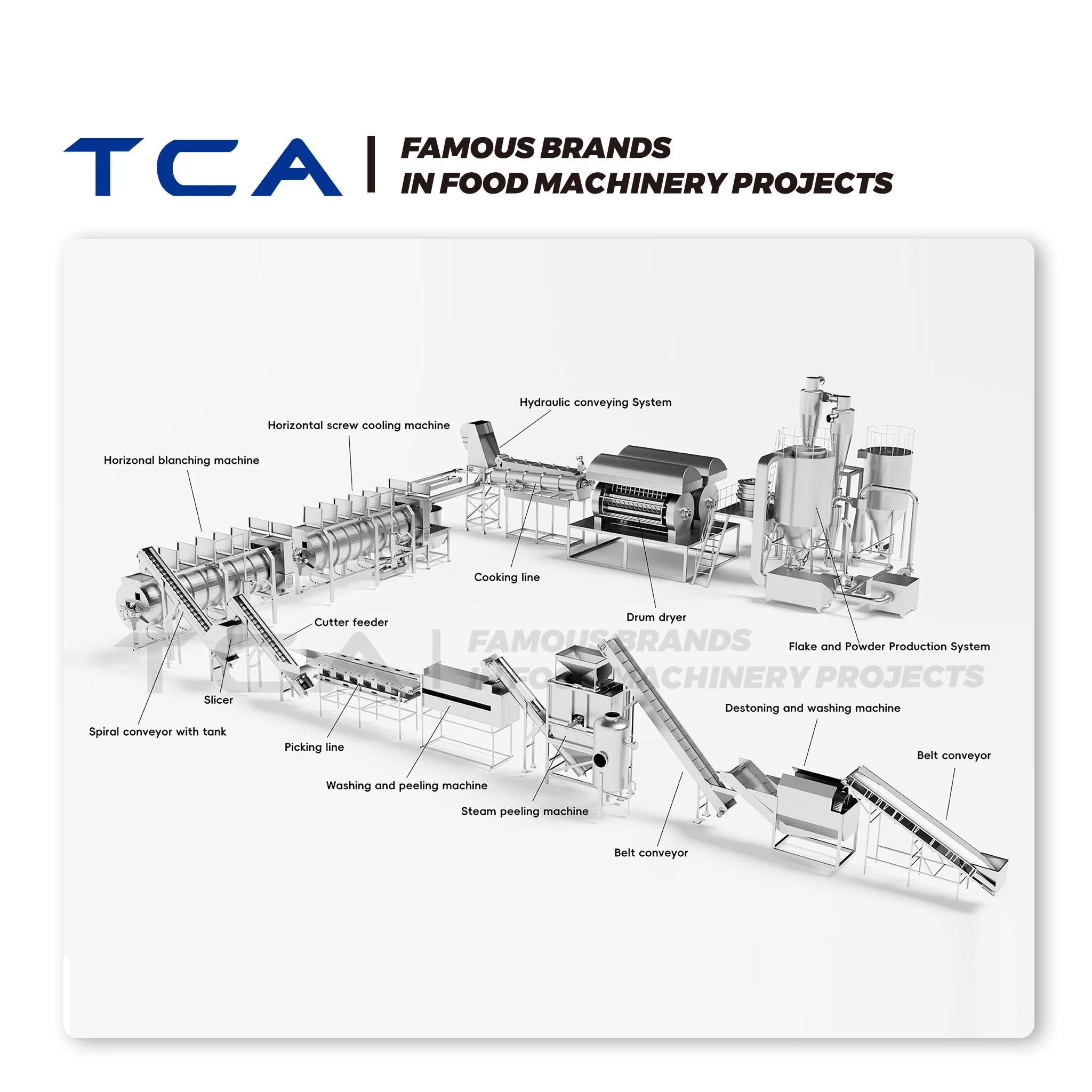

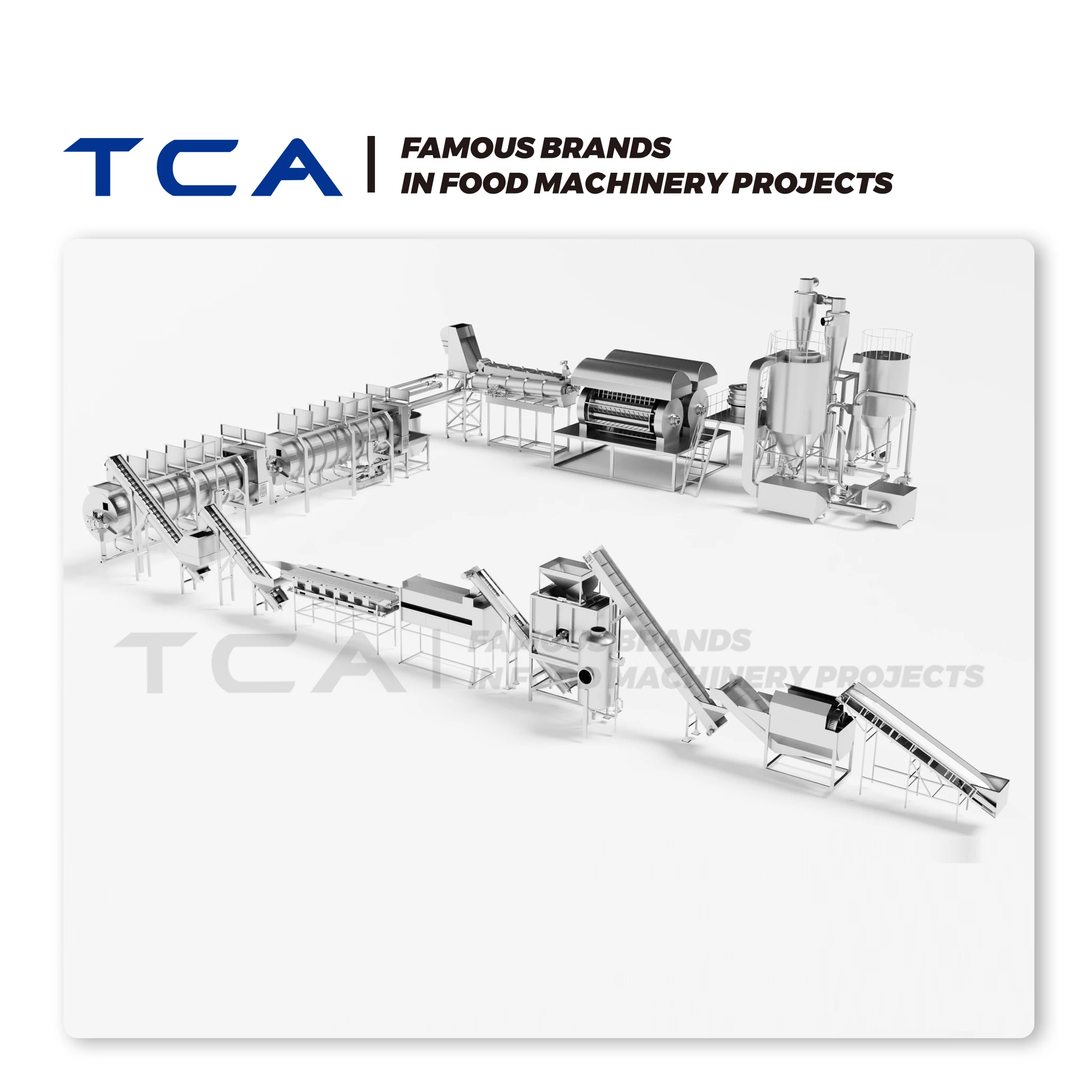

The full line runs: raw material intake → washing and destoning → steam peeling → slicing → blanching → cooling → cooking → mashing → drum drying → milling and sifting → weighing and packaging, eleven stages in total.

Washing and Destoning, and Steam Peeling

The destoner washer consists of three functional zones — a cyclone destoning zone that separates stones, a scum removal zone that removes stems and fibrous roots, and a washing zone that ensures thorough cleaning — with a capacity of up to 10–30 t/h.

Steam peeling is the focus of this stage: potatoes are loaded into a steam vessel, high-pressure steam cooks the skin, and the pressure is then released instantly so that the skin loosens. The equipment uses BLAST-VENT technology to achieve 0.5 s rapid pressure release, with a working pressure of P≤1.5 MPa and adjustable timing. The value of this process shows up directly in losses: steam peeling losses are generally 4%–7%, far below the 15% typical of conventional mechanical peeling. The potatoes then pass through a brush peeler, which separates the loosened skin from the flesh, followed by spray washing.

Note that the raw material variety itself affects peeling and finished product quality: choose potatoes of pure variety that are mature and fresh, strictly remove any that are sprouted, greened or mouldy, and give preference to varieties with shallow eyes, a good tuber shape, white flesh, low reducing sugar content and low solanine content. After peeling, manual inspection is still required to remove eyes and diseased parts.

Slicing, Blanching and Cooling

Slicing uses a water-jet slicer, replacing conventional mechanical cutting with water-jet cutting: cutting speed is high, material losses are low, and the slices come out smooth and flat with almost no feathering. Slice thickness is generally 10–15 mm (depending on potato maturity). The machine is fitted with flexible guides so that both large and small potatoes pass vertically through the centre of the cutting head, improving product appearance and yield.

Blanching destroys the catalase and peroxidase in the potato to prevent browning, while promoting starch gelatinisation and protecting the cell membranes. The process parameters are a water temperature of 72 °C and a time of approximately 20 min, adjustable. The screw blancher uses well-balanced thermal distribution and water flow control to keep the slices suspended and evenly heated, and is equipped with an external heat exchanger and a balanced heat supply system.

In the cooling stage, cold water washes the blanched slices to remove free starch and prevent sticking or scorching during drying. The process requirement is to bring the centre temperature of the slices down to 15–25 °C. The screw cooler cools the material to the target value either by direct injection of chilled water or by heat exchange — only when this step is done properly can the resulting mash be non-sticky, light and fluffy.

Cooking and Mashing

Cooking fully gelatinises the pre-cooked and cooled potatoes so that the starch is completely cooked, at a temperature of 95–98 °C and a time of 15–45 min, adjustable. The screw cooker injects steam directly and is fitted with multiple steam inlets for optimised heat distribution and precise temperature control.

For mashing, the screw conveyor supplied with the masher receives the cooked potato slices and forces them through a bar screen, with the option of adding auxiliary ingredients as required. Conveying uses a low-damage mash pump imported from Europe to prevent the mash from being damaged in transit — the integrity of the mash's cell structure directly affects the rehydration mouthfeel of the final product.

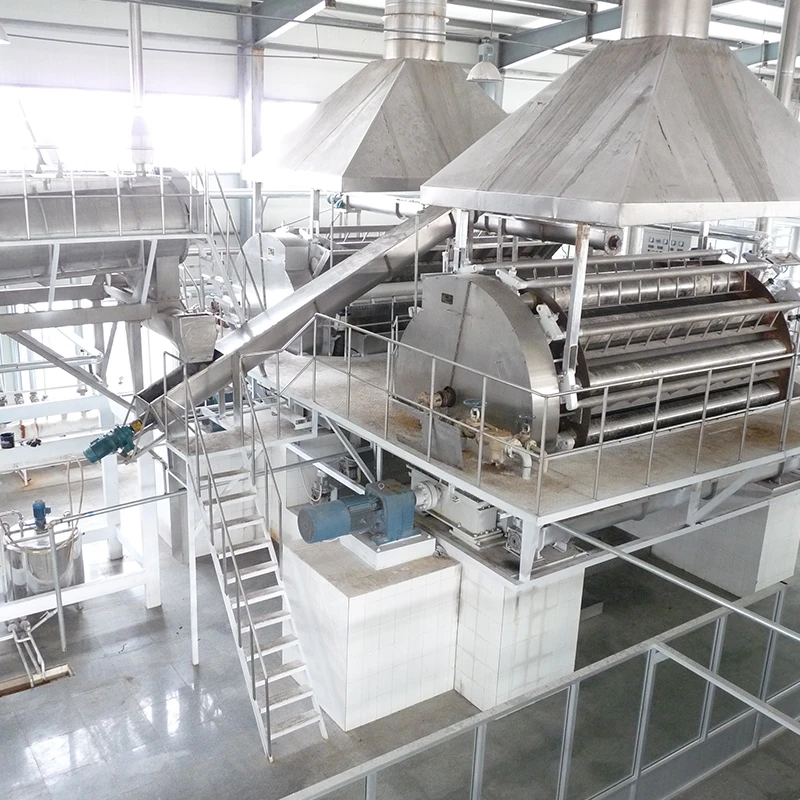

Drum Drying: The Core Process of the Line

Drum drying is the technical core of a potato flakes production line. The mash is spread evenly onto the surface of the hot drying drum by an applicator / distribution unit, and moisture drops rapidly from roughly 80% to below 8%, at a drying temperature of 50–90 °C over 6–12 h of continuous dehydration.

Three things are critical in this equipment: the drum surface is coated with a special alloy coating so that the mash forms a thin, evenly distributed film on the heated drum wall; a fully enclosed hood collects and recovers the large volume of steam generated during drying; and maximum drum capacity reaches 1,100 kg/h per drum. The uniformity of the film thickness determines drying consistency, and therefore whether the finished product ends up locally over-dried or under-cooked.

Milling and Sifting, and Weighing and Packaging

The sheet material scraped off the drum is conveyed to a mill for grinding and then sifted: product within specification is collected in a silo, while material that is out of specification is returned to the mill for further grinding. The core milling and packaging system covers five units: vacuum conveying, fine milling, buffer storage, metal detection and quantitative filling.

Packaging is metered at 25 kg net weight per bag using moisture-proof laminated woven bags. Finished product should be stored in a cool, dry environment to avoid high temperatures causing caking and deterioration.

Key Process Parameters at a Glance

The parameters above are design and reference ranges for the equipment. Actual output rate, rehydration performance and finished product yield must be verified by running your own potato variety through a trial — potato maturity, dry matter and reducing sugar content vary noticeably with growing region and season, so the same machine will perform differently when the variety changes.

Seven Points to Confirm Before Selecting a Potato Flakes Production Line

1. Target customer and end use — convenience food, catering chains, bakery, snacks, pet food or frozen foods? The end use determines the rehydration and purity requirements.
2. Capacity scale — defined in tonnes of finished product per day. Complete lines are moving towards larger scale, greater intelligence and lower energy consumption, and single-line capacity has already reached over 3,300 kg/h.
3. Raw material variety and supply cycle — eye depth and dry matter and reducing sugar content directly affect peeling losses and finished product colour, and the variety must be matched to the harvest season and storage capacity.
4. Peeling method — steam peeling losses are 4%–7% (mechanical peeling is around 15%), but it requires a supporting steam and rapid pressure-release system.
5. Drying configuration — drum drying is the core, so confirm that the number of drying drums matches the capacity (maximum 1,100 kg/h per unit).
6. Milling and packaging configuration — whether vacuum conveying, metal detection and quantitative filling are required, and whether the packaging specification is standardised at 25 kg/bag.
7. Plant and utilities — steam (for peeling and cooking), cooling water, electricity and steam recovery provisions. Steam recovery from drum drying is the key focus of energy-saving upgrades.

Frequently Asked Questions

What is the difference between potato flakes and potato starch?

Starch processing extracts only the starch component; potato flakes (dehydrated potato flakes) retain all of the potato's solids, including protein, fibre and minerals, so their nutritional value is closer to fresh potatoes and their taste is more natural. That is why they act as both a functional ingredient and a source of potato flavour in food formulations.

What stages does a potato flakes production line include?

Eleven in total: raw material intake, washing and destoning, steam peeling, slicing, blanching, cooling, cooking, mashing, drum drying, milling and sifting, and weighing and packaging. Drum drying is the core process.

What moisture content should potato flakes be controlled to?

The mash enters drum drying at around 80% moisture and drops to below 8% after drying. The drying temperature range is 50–90 °C with 6–12 h of continuous dehydration; the exact parameters need to be adjusted to the raw material variety and the target rehydration performance.

What are the advantages of steam peeling over mechanical peeling?

Steam peeling losses are generally 4%–7%, far below the roughly 15% of conventional mechanical peeling. The equipment uses BLAST-VENT technology to achieve 0.5 s rapid pressure release, with a working pressure of P≤1.5 MPa and adjustable peeling time, so flesh losses are smaller and the surface is more intact.

Which products are potato flakes mainly used in?

Convenience food (instant mashed potato cups, airline meals), the mashed potato base for catering chains, the bakery industry (bread, cakes and biscuits, added at 3%–15%), snacks (20%–60%), pet food (5%–30%) and frozen foods (15%–40%).
