Potato Chips Production Line: Process Flow, Equipment List and Selection Guide

The job of a potato chips production line is to convert an agricultural raw material with inconsistent shape, moisture and sugar content into an industrial snack food with uniform specifications and stable texture. From the moment a fresh potato enters the workshop to the moment it becomes a bag of golden, crispy potato chips takes only a few minutes.

This is also where the difficulty of specifying a potato chips production line lies: the bottleneck of a complete line is usually not the performance of an individual machine, but the interfaces between operations. Uneven slice thickness leads to uneven heat transfer during frying; insufficient blanching leads to browning in the finished product; incomplete dewatering lengthens frying time and raises oil absorption. When selecting equipment, therefore, the whole line should be matched by line rhythm rather than comparing individual machine parameters one by one.

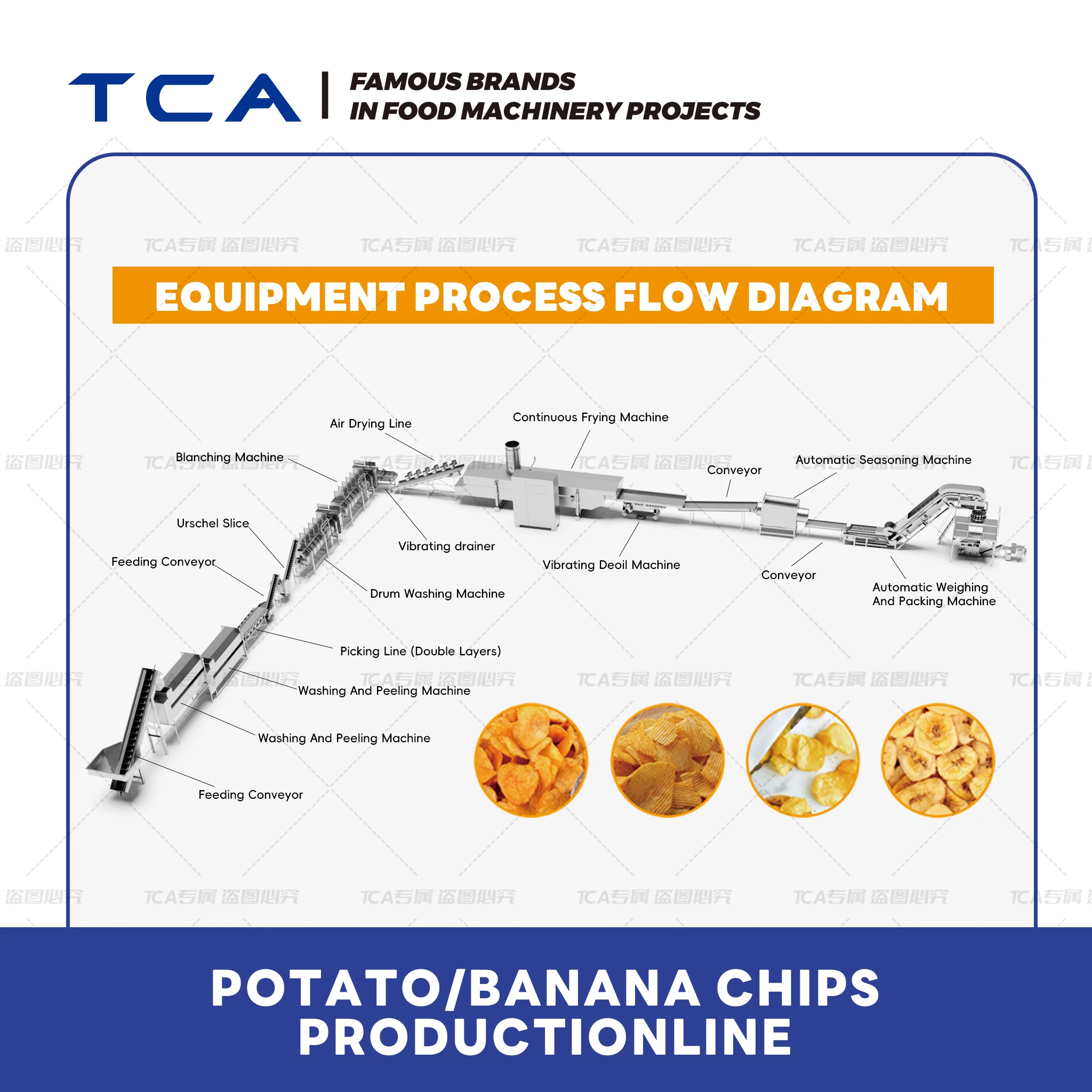

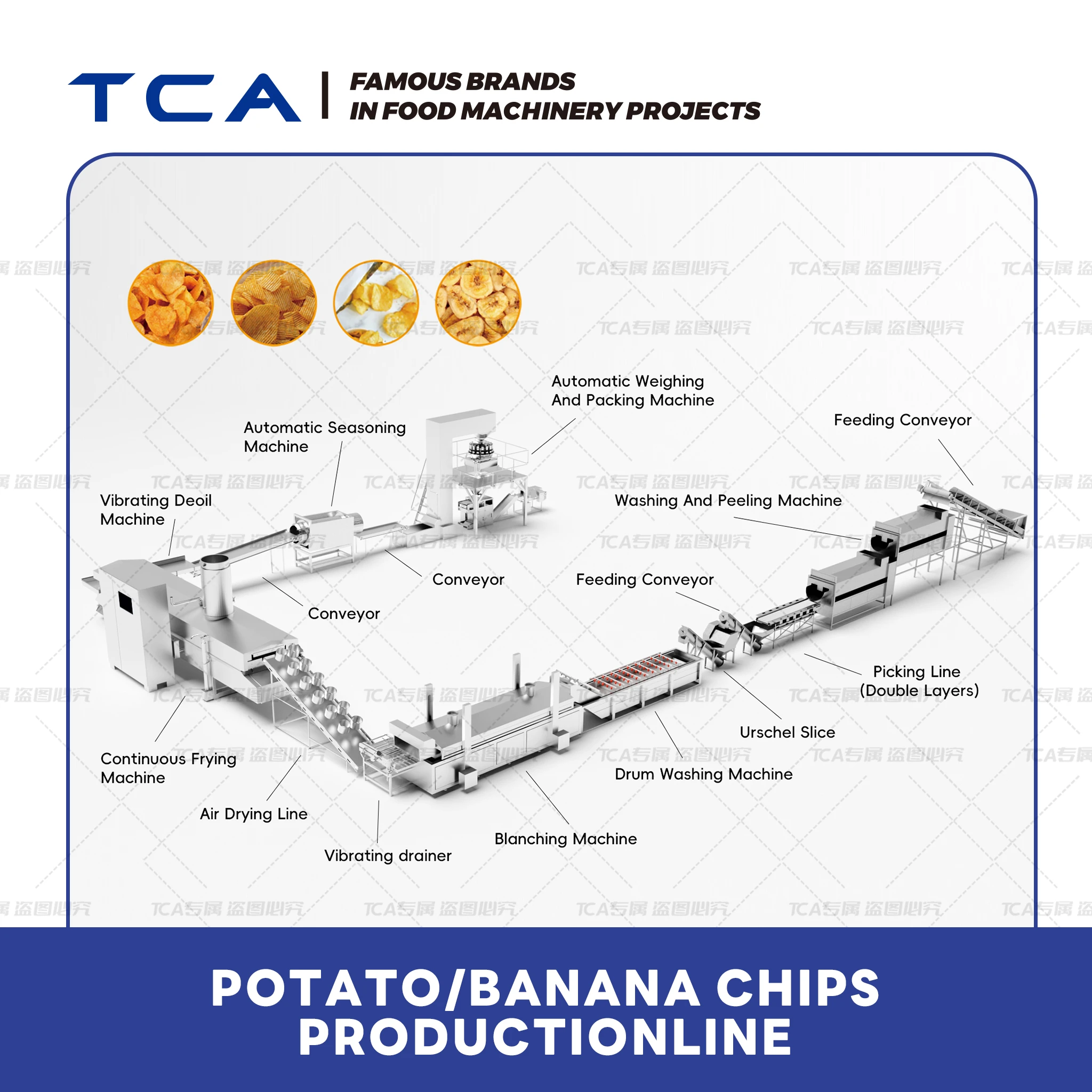

The Complete Potato Chips Manufacturing Process: Six Stages and Thirteen Operations

Raw Material Handling

1. Raw material selection and inspection. Raw material quality directly determines the texture and appearance of the finished product. Ideal raw material should meet the following requirements:

• Regular tuber shape and smooth surface, free of sprouting and greening
• Dry matter content ≥20 %, reducing sugar content ≤0.5 %
• White flesh, free of defects such as hollow heart and black heart
• An individual tuber weight of 150–300 g is preferred

Dry matter content determines yield and crispness, while reducing sugar content determines the degree of browning during frying — these two are the core indicators in raw material acceptance, and also the main source of inconsistency in the colour of the finished product.

2. Washing process. Removing surface soil, impurities and microorganisms is usually achieved by three machines working together: the soaking tank uses counter-current soaking to soften surface dirt; the drum washer uses a rotating drum and spray system for efficient cleaning; and the air-bubble washer intensifies the cleaning effect with turbulent bubbles.

3. Peeling process. With an emery lining or brush structure, potatoes rub against each other as they rotate, and peeling is completed in combination with high-pressure water rinsing. Continuous feed and discharge, a low loss rate, and efficiency far higher than traditional manual methods.

4. Sorting line. Manual removal of potatoes that are still rotten, sprouted or misshapen after washing, plus trimming of substandard parts. It is usually designed as a conveyor-belt worktable — one of the few stages in the whole line that requires manual involvement.

Cutting and Shaping

5. Slicer (potato chip making machine). Cuts peeled potatoes into uniform thin slices, with slice thickness adjustable from 1–6 mm and a typical thickness of about 1 mm. Fitted with high-precision blades, it produces a smooth, burr-free cut surface and even thickness, ensuring consistent heat transfer during subsequent frying. Some models can slice and cut strips at the same time; changing the cutting die switches the product form.

Pretreatment

6. Rinsing line (air-bubble washer). Washes away the free starch released from the surface of the sliced chips, preventing them from sticking together during frying. High-pressure bubbles and water jets make the chips tumble in the water, thoroughly removing surface starch.

7. Blancher (colour-protection machine). High-temperature hot water treatment delivers colour protection, sterilisation and enzyme inactivation. Its process function is to gelatinise the surface starch of the chips into a protective layer, fixing the colour, preventing oxidative browning and laying the foundation for a crisp shell in the subsequent frying step. Food-grade salt, sodium phosphate, citric acid, glucose powder and similar additives can be applied during processing to keep the chips brightly coloured.

8. Cooling / dewatering equipment. Removes the water clinging to the surface of the chips after blanching. There are two equipment types: the vibratory dewatering machine is a vibrating screen with a strong air flow that spreads the chips and blows off surface water; the centrifugal dewatering machine uses centrifugal force and is more efficient. Dewatering before frying can greatly shorten frying time, reduce oil absorption and improve texture — this step is often underestimated.

Frying

9. Continuous fryer. The continuous fryer for potato chips is the core unit of this stage: it reduces the moisture content of the chips from 80 % to about 2 %, creating a crisp texture.

In terms of structural design, the upper and lower double-layer mesh belts stop the chips from floating up and ensure even frying; the automatic oil filtration system continuously filters out oil residue and extends the service life of the oil; the automatic oil top-up system keeps the oil level constant; and the mesh belt lifting system makes cleaning and maintenance easier.

Post-Treatment

10. De-oiling machine (oil draining line). Removes residual oil from the surface of the chips after frying to lower the oil content of the finished product. There are two types, vibratory oil draining and electric-heated de-oiling: the electric-heated de-oiling machine adds a heating element and runs at constant temperature for a higher de-oiling rate, overcoming the greasy mouthfeel that comes with high oil content. The target oil content is usually kept between 30 %–40 %.

11. Seasoning machine (drum seasoning machine). Applies seasoning evenly to the chips. Drum seasoning suits powder seasoning, with the chips mixing with the seasoning inside a rotating drum; spray seasoning atomises the seasoning liquid and sprays it onto the chip surface, suiting sauce-type seasoning. The available flavour range covers original, tomato, spicy, barbecue, spring onion, curry and more, with 30+ flavours in total.

12. Cooling and sorting line. The chips cool down while substandard products such as burnt, broken and misshapen chips are removed. Once cooled, the chips are crisper and easier to package.

Packaging

13. Automatic packaging machine. It completes bag making, filling, sealing and coding. Nitrogen-flushed packaging fills the bag with nitrogen to displace oxygen, effectively preventing the chips from oxidising or breaking up and extending shelf life. Optional configurations include multihead weighers for accurate weighing and metal detectors.

 Equipment List and Quick Configuration Reference

 A Technology Worth Watching: Vacuum Low-Temperature Frying

Conventional frying takes place at atmospheric pressure and high temperature, whereas vacuum low-temperature frying lowers the boiling point of the oil under vacuum to achieve low-temperature frying (usually below 100 °C). Its advantages are that more nutrients are retained and oil intake is reduced, so the finished product better matches the trend towards healthier consumption.

Whether this process is worth adopting depends on your target market positioning: if the product is built around a health concept and aimed at markets sensitive to oil content and nutritional value, vacuum low-temperature frying is the key differentiator; if the focus is value for money and mainstream taste, a conventional continuous frying line with sound de-oiling and oil filtration control already meets demand.

Seven Points to Confirm When Selecting a Potato Chips Production Line

1. Target capacity — defined by finished-product tonnes per shift or per day, together with the packaging format and bag type.
2. Raw material conditions — variety, dry matter and reducing sugar content, and individual tuber weight range, which directly determine yield and the raw material pretreatment configuration.
3. Slice thickness range — 1–6 mm adjustable is the general configuration; if the product range covers both slices and strips, confirm how the cutting dies are changed.
4. Heating method — electric, gas, steam and thermal oil each suit different scenarios, depending on the plant's energy supply and operating cost structure.
5. Seasoning solution — powder seasoning and sauce seasoning require different equipment; the number of flavours determines whether multiple drums or a quick-change design is needed.
6. Packaging and inspection configuration — whether nitrogen-flushed packaging, multihead weighing and metal detection need to be included in the complete line.
7. Line integration and level of automation — the proportion of manual sorting versus automatic rejection, and whether central control is configured, directly affect staffing.

One point deserves special emphasis: speed, energy consumption and yield must all be verified by trial runs with your actual material. Catalogue parameters are measured under specific raw material conditions, and results differ noticeably once the variety or slice thickness changes.

Frequently Asked Questions

Which raw materials is a potato chips production line suitable for?

The main raw material is potato, which should have a regular tuber shape, a smooth surface, no sprouting or greening, a dry matter content of ≥20 %, a reducing sugar content of ≤0.5 %, white flesh free of hollow heart and black heart, and an individual tuber weight of 150–300 g. The equipment is designed to handle potatoes of different sizes, and operations such as cutting and peeling can be supplied with adjustable settings or size-grading options to guarantee consistent output quality.

What equipment is included in a potato chips production line?

From raw material handling to packaging there are more than ten machines: washing and peeling equipment, a sorting line, a slicer, a rinsing line, a blancher, cooling and dewatering equipment, a continuous fryer, a de-oiling machine, a seasoning machine, a cooling and sorting line and an automatic packaging machine. The exact configuration varies with capacity, product form and level of automation.

How does a potato chips production line reduce the oil content of the finished product?

Three stages decide this together: thorough dewatering before frying (which shortens frying time), specifying an electric-heated de-oiling machine in the de-oiling stage (for a higher de-oiling rate), and keeping the oil clean during frying (the automatic oil filtration system continuously filters out oil residue). The commonly targeted oil content in the industry is kept between 30 %–40 %.

Vacuum low-temperature frying or conventional frying — which should I choose?

Vacuum low-temperature frying lowers the boiling point of the oil under vacuum, usually below 100 °C, retaining more nutrients and reducing oil intake, which suits products built on a health concept; a conventional continuous frying line offers higher capacity and more concentrated investment, suiting mainstream taste and large-scale production. The two can also be configured in parallel for different product lines.

Is the equipment easy to clean and maintain?

The whole line uses structures designed for easy cleaning: the fryer is fitted with a mesh belt lifting system for straightforward cleaning and maintenance, and the equipment offers adjustable settings to suit different raw materials. We also provide operating manuals and maintenance guides to keep daily operation running smoothly.
