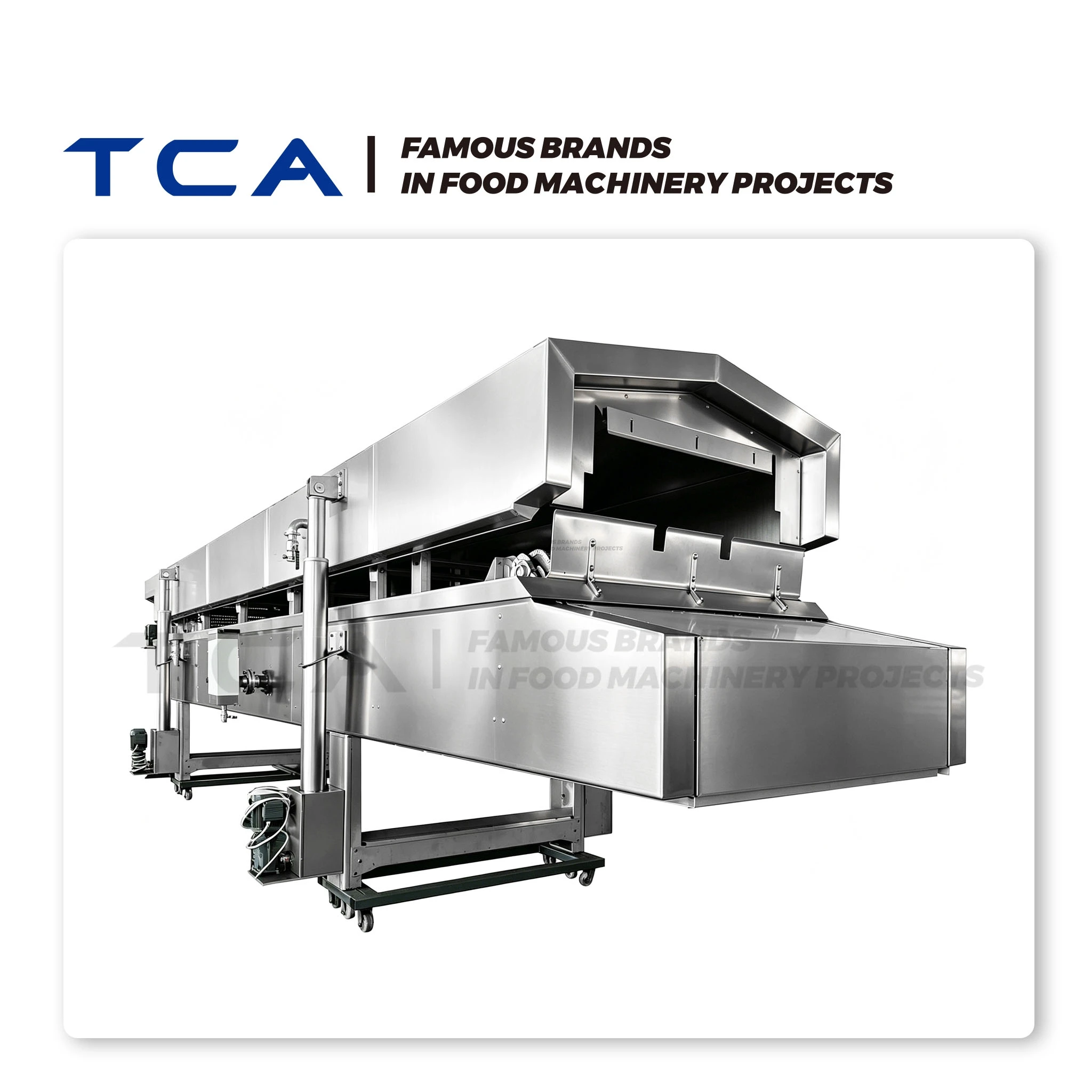

The XDL series are fully automatic frying lines designed for large‑scale continuous production. They are suitable for large food manufacturers that need to process hundreds or even thousands of kilograms of raw materials per day. This series adopts oil‑water mixture technology and is equipped with a fully automatic control system to achieve high efficiency and stable product quality.
Product Description
Oil‑water mixture system: Residues automatically sink into water without carbonizing; after separation, oil returns to the oil layer, saving more than 50% of oil compared to traditional fryers.
Intelligent temperature control: Digital temperature control with accuracy ±1℃, maximum 300℃. Over‑temperature protection (automatic power‑off when exceeding set value by 10℃). Automatic oil replenishment maintains normal oil level.
Advanced mesh belt conveyor: Double‑layer mesh belt design prevents products from floating and ensures uniform frying color. The belt is made of high‑temperature resistant non‑stick material. Frequency conversion speed regulation, frying time adjustable from 30 seconds to 5 minutes.
Comprehensive control systems: Including automatic oil temperature control, chain conveyor drive, four‑direction chain lifting, automatic coarse filtration, automatic slag scraping, automatic oil pumping, and CO₂ fire extinguishing system. The four‑direction chain lifting facilitates cleaning.
Eco‑friendly exhaust: High‑speed axial flow fan provides good exhaust effect and keeps the workshop clean.
Stable electrical system: High‑quality circuits, fast heating, automatic power cut when reaching set temperature, energy‑saving and environmentally friendly.
| Model | External Dim. (mm) | Oil Capacity (kg) | Output (kg/h) | Heating Method | Temp. Range | Frying Time |
|---|---|---|---|---|---|---|
| XDL-3500 | 3500×1250×2200 | 350 | 200 | Electric / Thermal oil / Gas / Steam | 0-300℃ | 30s‑5min adjustable |
| XDL-4500 | 4500×1250×2200 | 500 | 300 | Same as above | 0-300℃ | Same as above |
| XDL-5500 | 5500×1250×2200 | On request | On request | Electric / Gas | 0-300℃ | Same as above |
| XDL-6500 | 6500×1250×2200 | 800 | 600 | Electric / Thermal oil / Gas / Steam | 0-300℃ | Same as above |
| XDL-8500 | 8500×1250×2200 | 1000 | 1000 | Same as above | 0-300℃ | Same as above |
| XDL-10000 | 10000×1250×2200 | 1500 | 1500 | Same as above | 0-300℃ | Same as above |
| XDL-12000 | 12000×1250×2200 | 2000 | 2000 | Same as above | 0-300℃ | Same as above |
Common specifications: Temperature accuracy ±1℃, heating temperature 0‑230℃, material 304 stainless steel, voltage 380V.
Frequently Asked Questions
This machine is designed for processing a wide range of food raw materials. Depending on the specific model, it can handle fresh, chilled, or frozen materials within a defined size and moisture range. For optimal performance, we recommend confirming the raw material specifications before ordering.
The equipment is designed to handle potatoes of varying sizes. For certain processes such as cutting or peeling, adjustable settings or size grading solutions can be provided to ensure consistent output quality.
We provide customized solutions based on your factory layout, processing capacity, and production requirements. Our engineering team can assist with line design and technical planning.
Our solution service typically includes process analysis, equipment configuration, line layout drawings, operation guidance, and technical support. Upon request, we can also assist with installation guidance, commissioning, and operator training through online support.
We provide long-term after-sales support for complete processing lines, including technical consultation, troubleshooting assistance, spare parts supply, and system upgrade advice. Detailed operation manuals and maintenance guidelines are provided to ensure smooth daily operation.
