Fruit and Vegetable Freeze Dryer: Working Principle, Advantages and Selection Guide

To understand the difference between a freeze dryer and a hot-air dryer, the key is the "phase-change path of water."

Traditional hot-air drying heats the material above the boiling point of water and carries moisture away by evaporation of liquid water; vacuum freeze drying takes a different path — the water is first frozen into ice, and then, under low pressure, the ice sublimates directly into water vapour. Solid turns straight into gas, skipping the liquid phase, so no liquid flow forms inside the material and the original cell framework and porous structure are preserved.

This is exactly why freeze-dried fruits and vegetables "hold their shape, keep their colour and rehydrate fast": once the water leaves, it leaves behind a uniform honeycomb skeleton, so the finished product is crisp and softens again as soon as it is soaked. The low-temperature, aseptic environment also prevents the loss of heat-sensitive active components such as vitamins, anthocyanins and dietary fibre, as well as the oxidation browning, shrinking and deformation that are common with traditional drying.

Broken down from a process point of view, one complete freeze-drying cycle goes through three stages: step one, pre-freezing, cooling the material until the water inside it is completely frozen — the precondition for the later sublimation; step two, primary drying (sublimation drying), in which the ice crystals sublimate directly into water vapour under vacuum and are captured by the cold trap, removing most of the moisture from the material; step three, secondary drying (desorption drying), which removes the bound water held more tightly by the material's structure and brings the final moisture content down to the target value. Each stage has its own rhythm, and only a well-designed curve produces a product that is both thoroughly dry and free of collapse — which is why the "freeze-drying curve" is the most important process asset of a freeze drying machine.

Vacuum freeze drying vs. traditional hot-air drying

Freeze drying (FD) vs. vacuum frying (VF): how to choose

For fruit and vegetable crisp products there are two mainstream ripening routes in the industry: vacuum freeze drying (FD) and vacuum frying (VF). Both use a vacuum environment, but their principles are completely different — FD removes water by sublimation and adds no oil at all, while VF fries at low temperature under low pressure, so oil is part of the process. This directly determines the positioning and selling price of the finished product.

The selection logic is not complicated: for health-oriented, premium and export markets, freeze drying is the first choice; for mass-market snacks that pursue rich flavour and controllable cost, vacuum frying is more suitable. Some companies run both lines, using FD for high-margin products and VF for volume products, sharing the upstream washing, slicing and other processing equipment. If you are weighing the two processes at the same time, you can compare them on our frying equipment page.

Core advantages of the fruit and vegetable freeze dryer

Material and hygiene: all product-contact parts use 304 food-grade stainless steel

All core product-contact parts of the machine use 304 food-grade stainless steel — corrosion-resistant, easy to clean and free of hygiene dead corners, in line with food safety production standards. The overall structure has been optimised through simulation, giving extremely strong sealing and a stable constant-temperature, constant-pressure vacuum chamber. This effectively prevents contamination of the ingredients during processing and suits standardised, clean-room operation in food factories, with a low failure rate and a long service life.

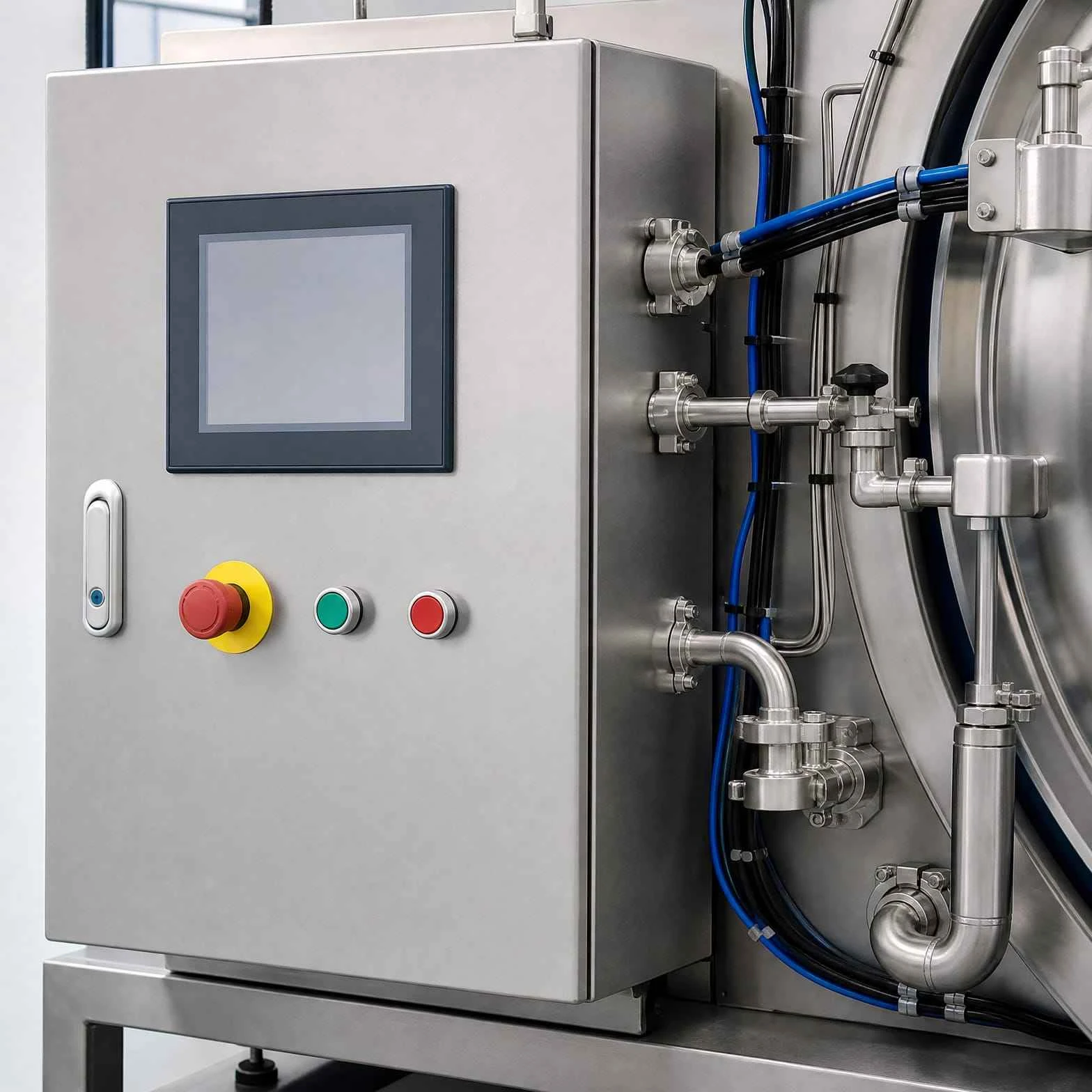

Smart automation: freeze-drying curves and batch consistency

The machine carries a self-developed intelligent control system with multiple precise freeze-drying curve programs built in. Strawberry, mulberry, mango, carrot, shiitake mushroom, goji berry and other fruits and vegetables each differ in moisture content, tissue structure and heat sensitivity, so each needs a different freeze-drying curve; the system matches the corresponding process parameters to the material with one click and automatically controls temperature, pressure and time throughout, requiring no manual attendance and running stably 24 hours a day.

The multi-chamber / tiered chamber design distributes temperature and vacuum level evenly inside the chamber, so the colour, crispness and moisture content of every batch are highly consistent. This matters especially to large-scale customers — batch consistency directly determines whether a product can enter a brand's supply chain, whereas manual operation is the most common cause of uneven quality.

Energy saving and capacity: integrated optimisation of refrigeration, vacuum and heating

The machine integrates and optimises its three major systems — refrigeration, vacuum and heating — and uses energy-saving core components, cutting energy consumption noticeably compared with traditional freeze-drying equipment and directly lowering the unit production cost per item. It also supports large-chamber batch loading, covering both the volume requirements of small and medium processors and the large-scale continuous production of major food companies.

Versatility: which fruits and vegetables one machine can handle

The machine suits the vast majority of fresh fruits and vegetables:

• Fruits: strawberry, blueberry, mulberry, durian, mango, etc.
• Vegetables: spinach, broccoli, shiitake mushroom, okra, carrot, etc.
• Food-medicine dual-use materials: goji berry, etc.

The machine supports customised capacity specifications on demand, ranging from small laboratory models and medium commercial models to large industrial mass-production models, and can be integrated with a complete fruit and vegetable deep-processing line to provide a turnkey one-stop solution.

Applications, capacity models and selection points for the fruit and vegetable freeze dryer

When selecting a machine, it is advisable to confirm the following seven items in one go, so that the solutions and quotations you receive are comparable:

• Material list: the fruit and vegetable categories you plan to process and your main category (freeze-drying curves differ greatly between categories)
• Target capacity: calculated as finished kilograms per batch or kilograms per day, taking loading rate and effective operating time into account
• Finished-product specifications: moisture content, rehydration time, colour and shape requirements
• Packaging method: whether nitrogen flushing, vacuum or desiccant packaging is required
• Plant conditions: ceiling height, floor load-bearing capacity, available power and cooling conditions
• Degree of automation: whether automatic loading/unloading and a linked control system are required
• Validation method: whether a trial run with your own material is needed (this is the most critical step)

Downstream applications of freeze-dried fruits and vegetables

Freeze-dried fruits and vegetables command a clearly higher product premium than traditionally dried ones, which is one of the main directions of upgrading in the agricultural deep-processing industry: with the same raw material, changing the drying method alone opens the door from raw-material supply into higher-value tracks such as snacks, meal replacements and tea beverages.

FAQ

What is the fundamental difference between a fruit and vegetable freeze dryer and a traditional dryer?

A hot-air dryer heats water until it evaporates as a liquid; freeze drying first freezes the water into ice, then lets the ice sublimate directly into a gas under vacuum. Because the liquid phase is skipped, the cell framework and porous structure of the material are preserved, so freeze-dried products keep a full shape, a natural colour and very strong rehydration, with higher retention of heat-sensitive nutrients.

What nutrient retention rate can freeze-dried fruits and vegetables reach?

After processing, nutrient retention can reach 95% or more, fully preserving the colour, aroma, shape and nutrients of the raw material. Actual figures vary with the material and the freeze-drying curve, so we recommend a trial run with your own material to obtain measured data for your product.

Which categories can one fruit and vegetable freeze dryer handle?

Fruits (strawberry, blueberry, mulberry, durian, mango, etc.), vegetables (spinach, broccoli, shiitake mushroom, okra, carrot, etc.) and food-medicine dual-use materials such as goji berry can all be processed. Different categories require different freeze-drying curves, and the machine has multiple built-in recipes that switch with one click according to the material.

How long can freeze-dried fruits and vegetables be stored at room temperature?

The finished product has a uniform honeycomb structure and an extremely low moisture content, so it can be stored long-term at room temperature without preservatives, making it suitable for long-distance transport and e-commerce sales.

Can the capacity be customised? Is a trial run with my own material needed?

Capacity can be customised, covering small laboratory models, medium commercial models and large industrial models. We support trial runs with your own material as well as remote trials, so you can verify the freeze-dried result on site before finalising the plan — far more reliable than reading a specification sheet alone.

About TCA (Xinxudong Machinery)

Shandong TCA Intelligent Technology Co., Ltd. (TCA) is a source manufacturer that combines equipment R&D, production, sales, after-sales service and custom process design in one. It has a professional R&D team and standardised production workshops, and has accumulated rich experience in fruit and vegetable freeze-drying processes. The company offers factory-direct prices and customises dedicated freeze-drying equipment and production line solutions according to the customer's plant dimensions, production capacity and processing categories; every machine undergoes multiple ageing tests and quality inspections before leaving the factory, and core components use first-tier international brands. On-site installation, commissioning, training and lifetime maintenance are provided.

Related equipment: vacuum freeze drying equipment, fruit and vegetable processing equipment, frying equipment, packaging equipment.

Need a fruit and vegetable freeze dryer solution and quotation? Send us the fruit and vegetable categories you plan to process, your target capacity, finished-product specifications (moisture content, rehydration time), packaging method and plant conditions. We will issue the equipment configuration, capacity plan and quotation accordingly, and we can arrange a trial run with your own material.
