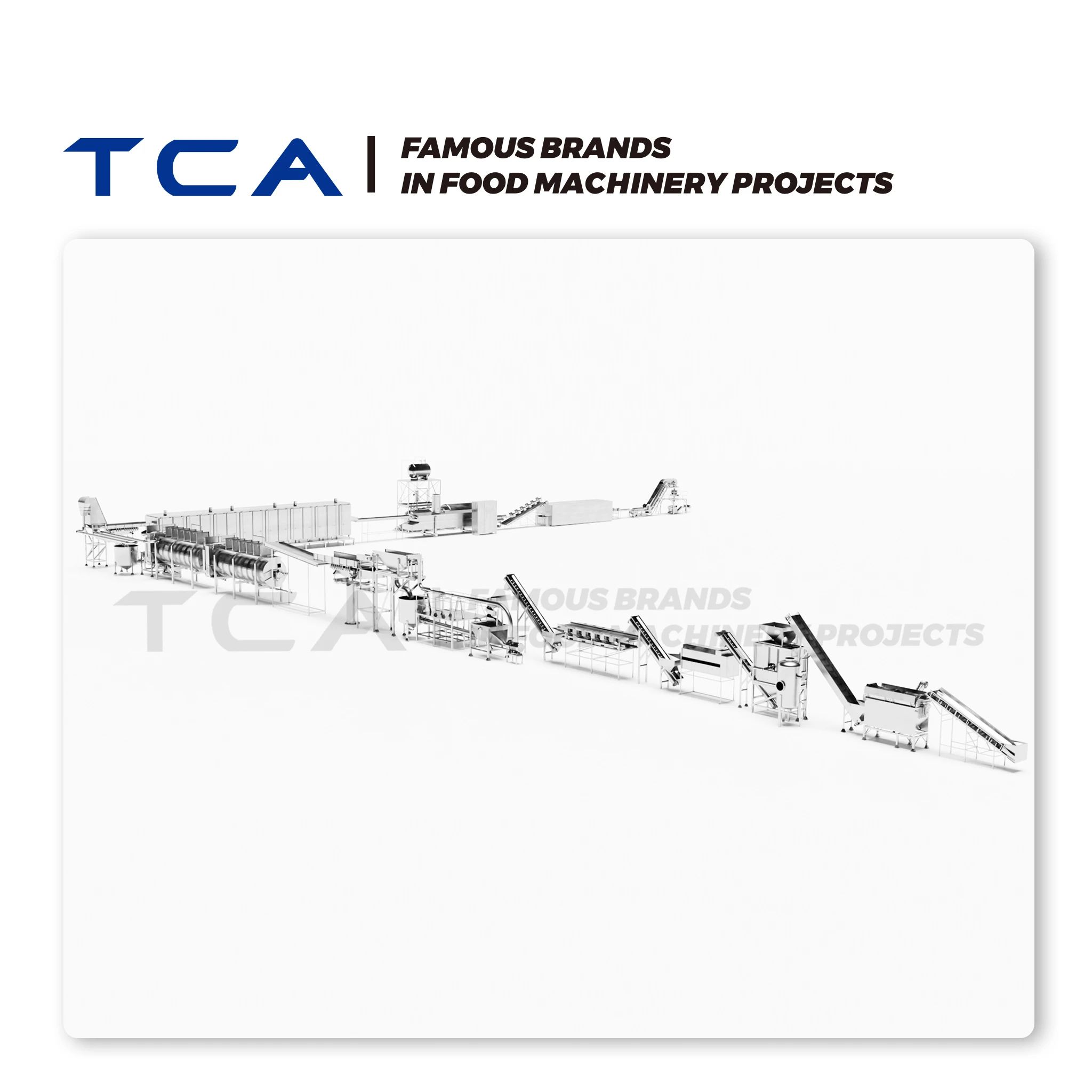

Frozen French Fries Production Line

The core problem a french fries production line solves is standardization. Potatoes arrive as an agricultural product with unpredictable shape, dry matter content and sugar level. Restaurants, food service distributors and retail buyers, however, need a product with identical length, colour, oil content and texture in every bag, in every shipment.

The line bridges that gap through controlled pre-treatment: blanching fixes texture and colour, drying controls moisture, frying drives the Maillard reaction, and IQF freezing locks the result in place. The output is frozen french fries with a core temperature below −18 °C, packed in nitrogen-flushed food-grade bags and stored ready for shipment.

A secondary role matters just as much commercially: a properly designed french fries processing line determines your yield per tonne of raw potatoes. Peeling loss, trim loss, cut-grade loss and freeze loss are the four places where money disappears, and every one of them is a design decision rather than an operator decision.

The 8 Core Stages of Frozen French Fries Production

Stage 1: Raw Material Receiving and Storage

Dedicated processing varieties are used — Shepody, Russet Burbank and Atlantic among them — rather than table potatoes. Four specifications matter:

• Dry matter content: 18–24 %. This drives both fry yield and final texture.
• Reducing sugar content: ≤0.25 %. Above this level the fries brown too much during frying.
• Shape: elongated and cylindrical to oblong, at least 8 cm long. Long tubers produce long, premium-grade fries.
• Free from sprouting, greening, hollow heart and black heart.

Potatoes are then held in temperature- and humidity-controlled storage, normally at 8–12 °C. This is not passive storage but an active conditioning stage: the tubers partially convert starch into sugar, and getting that balance right is what produces a uniform golden colour after frying. Too little sugar and the fries come out pale; too much and they scorch.

Stage 2: Washing and Size Grading

Potatoes pass through a drum or water-jet washer where vigorous water flow and friction strip off soil, sand and stones. They are then graded by size using a drum or weight-based grader. Large potatoes go to long-cut fries; smaller ones are routed to short cuts or other products. Grading here is what makes the downstream cutting specification achievable.

Stage 3: Peeling and Trimming

Steam peeling is the mainstream technology. Potatoes enter a high-pressure steam chamber for roughly ten seconds; the skin cooks and loosens, then a rapid pressure release makes it burst. A high-pressure water jet or rotating rubber rollers then remove the loosened skin. Loss is low — around 8–12 % — and the process avoids the wastewater load of lye peeling.

Trimming follows on a conveyor, either manual or using an AI-powered vision inspection system, where residual sprouts, black spots, green patches and bruises are removed.

Stage 4: Cutting and Blanching

Trimmed potatoes are fed into a high-speed water-jet or centrifugal cutter and cut into square-cross-section fries, commonly 9 mm × 9 mm. Cut size is adjustable across a range — typically 6 mm to 15 mm on the strip cutter — depending on the product grade you are targeting.

The fresh-cut fries are immediately rinsed to remove surface starch and prevent sticking during frying.

Blanching is the single most important step for texture and colour. Fries pass through a hot water bath at 70–95 °C for several minutes, which:

• partially cooks the surface starch and forms a gel layer, so the fries hold their shape and resist breaking during frying;
• removes part of the sugars and amino acids, precisely controlling how far the Maillard reaction goes — this is what produces an even golden colour instead of a dark brown one;
• deactivates enzymes and prevents browning.

Stage 5: Dewatering and Drying

Fries leaving the blanching tank carry a heavy surface film of water. A high-powered air knife or centrifugal dehydrator removes it. Skip this and you pay for it twice: extra energy to boil off that water in the fryer, plus heavy oil splattering and a less crisp finished product.

Stage 6: Frying and De-oiling

Fries travel through a continuous fryer on a dedicated conveyor, typically at 170–185 °C for 1–3 minutes. This dehydrates the product, cooks it, and drives the Maillard reaction that creates the golden colour and characteristic flavour.

They then go straight into a centrifugal de-oiling machine, which spins off the surface oil and controls the final oil content — one of the quality indicators buyers check first.

Stage 7: IQF Freezing

Hot fries enter a quick-freezing tunnel — spiral or straight-line — running below −35 °C. Core temperature drops below −18 °C within 15–20 minutes. Rapid passage through the ice-crystal formation zone is what preserves the cell structure; freeze slowly and the fries turn soft and watery after thawing, no matter how good the frying was.

Stage 8: Grading, Metal Detection and Packaging

Frozen fries are length-graded on a vibrating mesh screen into long, medium and short cuts to meet different buyer specifications. They then pass a metal detector.

Packaging runs automatically at the set weight — 2 kg per bag is common. Fries go into food-grade bags with an aluminium foil liner for moisture and oxygen barrier, the bag is nitrogen-flushed and sealed to inhibit oxidation, and the cases are palletized and moved into −18 °C cold storage.

For completeness, the chain ends in the restaurant kitchen: frozen fries go straight into 190–200 °C oil without thawing, for about 2–3 minutes, until golden outside and fully heated through.

Complete Equipment List

Frozen French Fries Quality Standards

How to Choose the Right Capacity and Configuration

Six decisions determine the line you actually need:

1. Target output. Work backwards from finished tonnes per hour, then add margin for changeovers, cleaning cycles and seasonal raw-material variation. A line sized exactly to peak demand will bottleneck in practice.
2. Product grade mix. Long-cut premium fries, shoestring cuts and coated fries impose different requirements on the cutter, the blancher and the fryer. Decide the mix before the equipment list.
3. Raw material supply. Potato variety, size distribution and dry matter content directly affect yield. Confirm what your growers or suppliers can actually deliver, on a twelve-month basis rather than a peak-season basis.
4. Automation level. Manual trimming versus AI vision inspection, and manual palletizing versus automatic, change both headcount and consistency. This is usually the largest single swing factor in project cost.
5. Utilities and cold chain. Steam, water, power, refrigeration capacity and −18 °C storage volume all constrain the design. Cold storage is frequently underestimated at the planning stage.
6. Site and layout. Available floor area, ceiling height for the freezing tunnel, drainage, and hygienic zoning for washdown all shape the layout drawing.

The practical way to settle all six is a raw-material trial: send potato samples, target cut size and target capacity, and evaluate yield, cut quality and freeze performance on real material rather than on a specification sheet.

What Drives the Cost of a French Fries Production Line

Cost differences between two apparently similar french fries production lines come from five areas:

1. Capacity and equipment count. A larger line is not simply a scaled-up version — it adds units, wider conveyors and larger refrigeration duty.
2. Automation and control. Vision inspection, automatic de-oiling control, centralised PLC and SCADA supervision, and automatic palletizing each add cost and each remove headcount.
3. Frying and freezing technology. Continuous fryers with automatic oil filtration, and spiral versus straight-line freezing tunnels, sit at different price points and deliver different performance.
4. Material and hygiene specification. Food-grade stainless steel, hygienic design for washdown, and compliance with the standards of your target export market.
5. Non-standard scope. Unusual site conditions, custom packaging formats, or integration with an existing production hall.

To get comparable quotations, send all of the following in one package: potato variety and samples, target cut size and grade mix, required output, available utilities, site dimensions, and destination market. Comparing quotations built on different assumptions is the most common way projects lose money before the equipment even ships.

Turnkey Delivery and After-Sales Support

A complete line project normally runs through five stages: process analysis and equipment configuration; line layout drawings and quotation; manufacturing and factory acceptance; installation guidance, commissioning and operator training; and long-term operation support.

Support after delivery covers technical consultation, troubleshooting, spare parts supply and system upgrade advice, with detailed operation manuals and maintenance guidelines for day-to-day running.

Frequently Asked Questions

What raw materials can a frozen french fries production line process?

The line is designed for dedicated processing potato varieties such as Shepody, Russet Burbank and Atlantic, with dry matter content of 18–24 % and reducing sugar at or below 0.25 %. Individual machines handle fresh, chilled or frozen material within a defined size and moisture range depending on the model, so confirming raw material specifications before ordering is recommended.

Can the line handle potatoes of different sizes?

Yes. Size grading is a built-in stage of the process. Adjustable settings on the cutter and peeler, combined with drum or weight-based grading, keep output quality consistent even when raw material size varies.

Is the equipment easy to clean and maintain?

Equipment is built in food-grade stainless steel with hygienic design for washdown between production runs. Detailed cleaning and maintenance guidelines are provided with every line, and the configuration is adapted to your factory layout, capacity and production requirements.

What is included in your processing line solution service?

Process analysis, equipment configuration, line layout drawings, operation guidance and technical support. On request, installation guidance, commissioning and operator training can be provided through online support.

What after-sales support is provided for complete processing lines?

Long-term after-sales support including technical consultation, troubleshooting assistance, spare parts supply and system upgrade advice, supported by operation manuals and maintenance guidelines.

About Shandong TCA Intelligent Technology Co., Ltd.

Shandong TCA Intelligent Technology Co., Ltd. is a global manufacturing supplier specialising in comprehensive solutions for food processing projects. The company focuses on the research, development and supply of complete equipment sets for potato processing, fruit and vegetable processing, and meat processing, alongside packaging equipment and vacuum freeze-drying equipment. Its french fries production lines are built for medium and large-scale food processors that need high automation, stable equipment performance and a complete solution rather than individual machines. Related lines include potato chips and hash brown production.

Ready to size a line for your project? Send us your potato variety and samples, target cut size, required output and site conditions, and our engineering team will come back with a configuration, a layout drawing and a quotation.
