The coffee freeze dryer (vacuum freeze dryer for coffee) turns cold brew coffee liquid, coffee concentrate and straight coffee extract into freeze-dried coffee using the principle of low-temperature vacuum sublimation drying. Compared with conventional spray drying, freeze-dried coffee is true to flavour, richly aromatic, instantly soluble in hot or cold water and free of scorched or burnt notes, and it has become the premium, high-volume category of the instant coffee market. The process has three main steps — pre-freezing, vacuum sublimation and desorption drying: the coffee liquid is first rapidly pre-frozen to −40 to −50 °C so that its water forms uniform ice crystals, the ice crystals are then made to sublimate directly into vapour inside a high-vacuum chamber, and finally the bound water is removed, holding the finished product's moisture content steadily at 1%–4%. Shandong TCA Intelligent Technology Co., Ltd. (TCA) specialises in the development and manufacture of industrial coffee freeze dryers, and can customise a dedicated freeze-drying recipe to match the characteristics of your material.
Why Specialty Coffee Needs a Coffee Freeze Dryer Rather Than Spray Drying
Conventional high-temperature drying and spray drying run at far too high a temperature and directly destroy the aromatic compounds, chlorogenic acid and other core flavour components of coffee, leaving a loss of aroma and a bitter, astringent cup. Vacuum freeze drying stays at low temperature from start to finish, with no high-temperature damage — which is exactly why it has become the core process for premium freeze-dried coffee.
| Comparison | Vacuum freeze-dried coffee | Conventional spray-dried coffee |
|---|---|---|
| Drying principle | Pre-freezing followed by vacuum sublimation — ice crystals pass directly from solid to gas | High-temperature spraying evaporates the water |
| Drying temperature | Low temperature throughout; −40 to −50 °C during pre-freezing | High temperature |
| Aroma and flavour | True flavour and rich aroma; heat-sensitive components well preserved | High temperature destroys aromatic compounds and chlorogenic acid; aroma lost, bitter and astringent |
| Solubility | Porous and loose; instantly soluble in hot or cold water | Instant |
| Mouthfeel | Full-bodied, no scorched or burnt taste | Prone to scorched or burnt notes |
| Product positioning | Premium specialty instant coffee | Mainstream instant coffee |
Choosing freeze drying is essentially paying for a flavour asset: for the same tonne of coffee liquid, the premium a freeze-dried finished product commands in the end market far exceeds that of conventional instant coffee — which is why specialty coffee brands and cold brew brands are all adding freeze-drying lines.
| Step | What it does | Key point |
|---|---|---|
| ① Pre-freezing | Rapidly pre-freeze the coffee concentrate to −40 to −50 °C | Turns the water in the coffee extract into uniform ice crystals — the precondition for sublimation |
| ② Vacuum sublimation | Let the ice crystals sublimate directly into vapour inside a sealed high-vacuum chamber | No liquid stage is involved, so flavour compounds are not destroyed by high temperature |
| ③ Desorption drying | Precisely remove the bound water from the material | Finished moisture content held steadily at 1%–4% |
The most under-estimated of the three steps is the water-vapour trapping capacity in step two. Sublimation produces a very large volume of vapour; if the cold trap cannot keep up, the vapour backflows inside the chamber and returns to the material, directly causing caking and moisture pick-up — and this is the stage where an ordinary general-purpose freeze dryer most often comes unstuck on coffee.
All product-contact parts are made of 304 and 316 food-grade stainless steel, and the chamber is mirror-polished — no dead corners, easy to clean, corrosion-resistant, effectively preventing coffee residue contamination and oxidative deterioration of the material, and in line with China's SC food production regulations. Chamber sealing is exceptionally tight, keeping outside air out and safeguarding the purity and storage stability of the finished freeze-dried coffee at the hardware level, making the unit suitable for standardised cleanroom production.

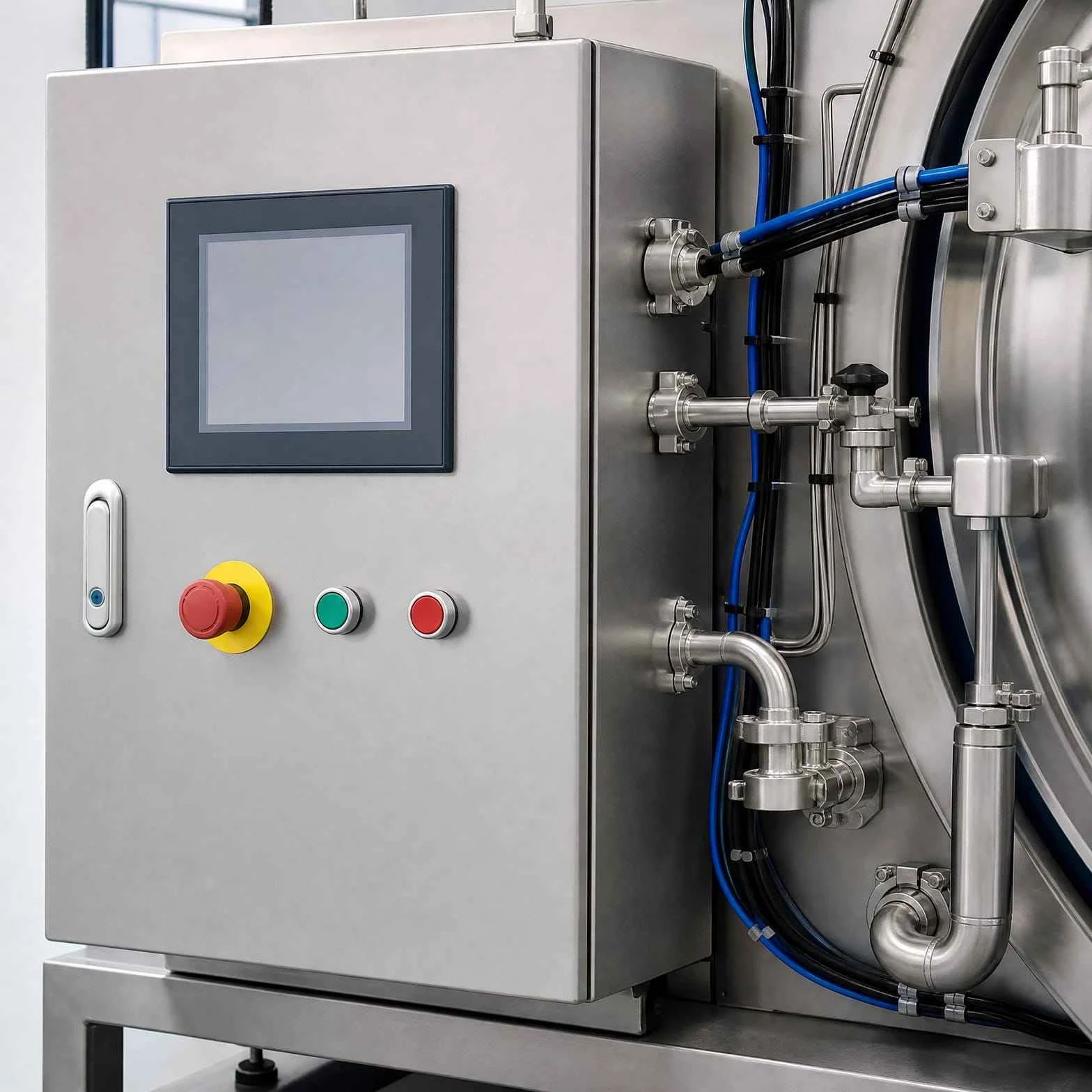

The unit carries a fully automatic PLC intelligent control system with multiple proven coffee-specific freeze-drying curves built in, covering cold brew coffee, hot brew coffee and coffee extracts of different concentrations, with custom parameter adjustment supported. Temperature, vacuum and time are all controlled automatically throughout, enabling 24 hours of continuous production and keeping the variation in aroma, mouthfeel and appearance between batches to a minimum.
Running cold brew and hot brew on the same machine really means running two different temperature-ramp and vacuum profiles; the freeze-drying curve is the core process asset of the machine, and it decides whether the finished product comes out "aroma-rich" or "flat and bitter".
The amount of vapour produced when freeze-drying coffee concentrate is far greater than with solid materials, and that is the first hurdle an ordinary freeze dryer hits. TCA coffee freeze dryers upgrade to a high-power refrigeration unit and a large-capacity low-temperature cold trap for stronger water-vapour trapping capacity and faster cooling: the large volume of vapour generated during sublimation is captured before it can backflow and contaminate the material, eliminating caking, moisture pick-up and flavour degradation at the root. The energy system has also been optimised, for lower consumption and more stable running.
The model range is complete, covering small laboratory trial machines, mid-sized commercial machines and large industrial production machines, with chamber dimensions and shelf area customizable on request. A machine can be used standalone or integrated into a complete coffee deep-processing line covering roasting, extraction, concentration and packaging, giving you a one-stop coffee freeze-drying production solution.
| Dimension | Content |
|---|---|
| Typical customers | Specialty coffee producers, instant coffee processing plants, cold brew coffee brands, coffee ingredient supply chain companies, food R&D laboratories |
| Processable products | Cold brew freeze-dried coffee, specialty instant freeze-dried coffee, freeze-dried coffee blocks, compound-flavour freeze-dried coffee, coffee extract |
| Finished product characteristics | Porous and loose, instantly soluble in hot or cold water, rich and full aroma, no additives, long shelf life |
| Downstream uses | Retail, and as an ingredient for milk tea, bakery and specialty beverages |
Freeze-dried coffee is especially valuable in the foodservice channel: it can be sold as a finished product and as an ingredient — a tonne of freeze-dried coffee serves both the retail and the B2B outlet at once, a channel flexibility that conventional instant coffee does not offer.
Buying a single freeze dryer and configuring a complete freeze-dried coffee production line are two different projects. Freeze-dried coffee is the end product of coffee deep processing, and the performance of every preceding stage carries straight through into the freeze-drying chamber.
| Process stage | Function | Interface with the freeze-drying stage |
|---|---|---|
| Roasting | Sets the flavour baseline | The roast level directly determines the flavour direction of the extraction liquid that follows |
| Extraction | Transfers coffee flavour into the liquid | Extract concentration and solids content affect the pre-freezing speed |
| Concentration | Raises the solids concentration | The higher the concentration, the less water each unit of product has to sublimate away |
| Freeze drying | Removes water by sublimation to make the solid finished product | The core stage; must match the material characteristics of every preceding stage |
| Packaging | Blocks out vapour and oxygen | Freeze-dried product picks up moisture easily, so seal integrity directly determines shelf life |
The place where a line most often goes wrong is usually the match between concentration and freeze drying: if the concentrate is too dilute, the freeze-drying stage has to sublimate away more water, pushing both energy consumption and cycle time up; if it is too concentrated, pre-freezing time stretches markedly. So when specifying equipment you should give the supplier the material parameters for the whole line — concentration, solids content, batch size — rather than quoting a single daily capacity figure.
Our coffee freeze dryer can be used standalone or integrated into a complete coffee deep-processing line covering roasting, extraction, concentration and packaging.
| Common problem | Root cause | Solution |
|---|---|---|
| Coffee caking | Sublimated vapour backflows; insufficient water-vapour trapping capacity | High-power refrigeration unit + large-capacity low-temperature cold trap |
| Moisture pick-up | Insufficient chamber sealing and moisture control | Reinforce chamber sealing; hold moisture content steadily at 1%–4% |
| Flavour loss | Imprecise temperature control; heat-sensitive components destroyed | PLC automatic control of temperature, pressure and time + coffee-specific freeze-drying curves |
| Large batch-to-batch colour variation | Reliance on manual intervention; unstable parameters | Full-process automation for 24-hour continuous, stable production |
What these four problems have in common is that they are all process-control issues rather than finished-product inspection issues — once caking or colour variation is detected, it is already too late to rework the batch. So the key to specifying a coffee freeze-drying line is not the nominal parameters of a single machine, but whether it can run stably over the long term with liquid material and high water loads.
What is the difference between a coffee freeze dryer and an ordinary freeze dryer?
A coffee freeze dryer is purpose-built equipment for liquid materials: it handles a large volume of vapour, so it needs high-power refrigeration and a large-capacity low-temperature cold trap to prevent backflow; and it has dedicated freeze-drying curves built in for cold brew, hot brew and coffee extracts of different concentrations. An ordinary freeze dryer is designed for solid materials, and running coffee liquid through it tends to produce caking, moisture pick-up, flavour loss and batch-to-batch colour variation.
What moisture content can freeze-dried coffee be controlled to?
The desorption drying stage can hold the finished moisture content steadily at 1%–4%. The lower the moisture content, the better for long-term storage and resistance to moisture pick-up; the actual figure varies with material concentration and the freeze-drying curve, so we recommend running a trial with your own material to obtain measured data for your product.
Can one machine run both cold brew and hot brew coffee?
Yes. Multiple coffee-specific freeze-drying curves are built in, covering cold brew coffee, hot brew coffee and coffee extracts of different concentrations, with custom parameter adjustment supported — simply call up the corresponding curve when switching between the two materials.
Why does freeze-dried coffee cost more than spray-dried coffee yet sell better?
Because freeze drying stays at low temperature throughout, aromatic compounds, chlorogenic acid and other heat-sensitive components are not destroyed, and the finished product has a rich aroma, no scorched notes and a porous, loose structure that dissolves instantly in hot or cold water. At the till it occupies a premium specialty position, and it can also serve as an ingredient for milk tea, bakery and specialty beverages — so both the channel reach and the premium headroom are larger.
Can the equipment be customised? Do I need to run a trial with my own material?
Chamber dimensions and shelf area can both be customized on request, and the model range runs from small laboratory trial machines to large industrial production machines. Free trials with your own material are supported, so you can verify the finished freeze-dried coffee on site before finalising the plan — for liquid materials, that step is far more reliable than reading a specification sheet.
Shandong TCA Intelligent Technology Co., Ltd. is a source manufacturer that combines R&D, production, sales and after-sales service of food freeze-drying equipment in one company. With many years of experience in the freeze-drying machinery industry, it has a rich record of installed coffee freeze-drying projects and a mature freeze-drying process database. Factory-direct supply means no middleman markup, and a full one-stop service is provided: free trials with the customer's own material, to verify the finished freeze-dried coffee on site; a professional technical team that tailors the selection plan to your capacity, plant space and material characteristics; multiple quality inspections and commissioning before the equipment leaves the factory; and on-site installation, commissioning, operator training and lifetime maintenance, with fast after-sales response.
Related equipment: vacuum freeze drying equipment, fruit and vegetable freeze dryer, packaging equipment.
Need a coffee freeze dryer proposal and quotation? Send us the coffee material you plan to process (cold brew / hot brew / concentrate, and its concentration), your target capacity, your finished-product specifications (moisture content, instant solubility) and your plant conditions. On that basis we will issue the equipment configuration, capacity plan and quotation, and can arrange a free trial run with your own material.
Frequently Asked Questions
This machine is designed for processing a wide range of food raw materials. Depending on the specific model, it can handle fresh, chilled, or frozen materials within a defined size and moisture range. For optimal performance, we recommend confirming the raw material specifications before ordering.
The equipment is designed to handle potatoes of varying sizes. For certain processes such as cutting or peeling, adjustable settings or size grading solutions can be provided to ensure consistent output quality.
We provide customized solutions based on your factory layout, processing capacity, and production requirements. Our engineering team can assist with line design and technical planning.
Our solution service typically includes process analysis, equipment configuration, line layout drawings, operation guidance, and technical support. Upon request, we can also assist with installation guidance, commissioning, and operator training through online support.
We provide long-term after-sales support for complete processing lines, including technical consultation, troubleshooting assistance, spare parts supply, and system upgrade advice. Detailed operation manuals and maintenance guidelines are provided to ensure smooth daily operation.
